Wholesale 580W-600W High Power Output Monocrystalline Solar Panel PV Module

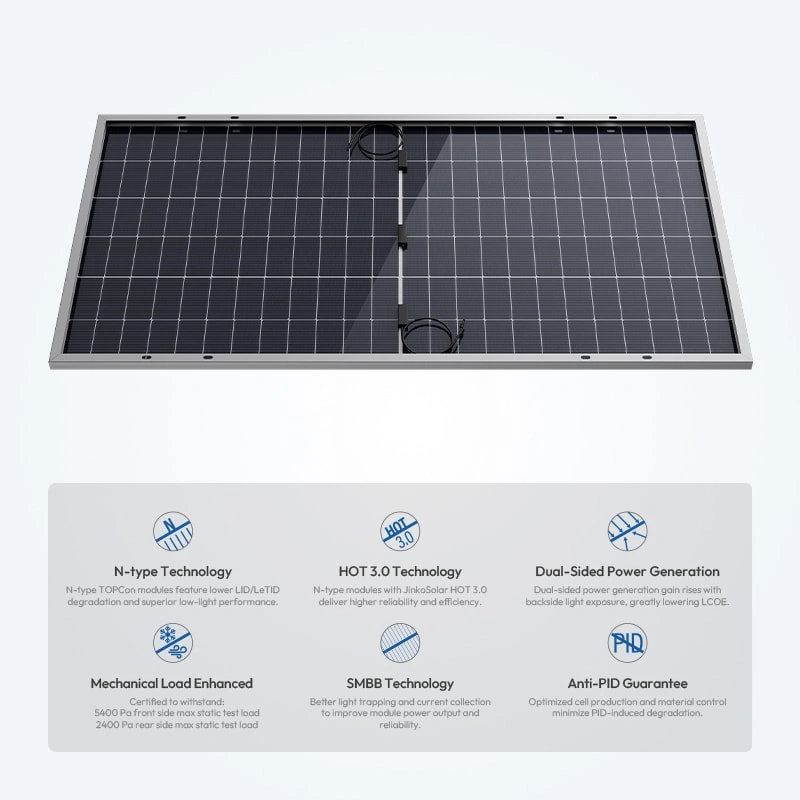

580W-600W solar panels are high-efficiency modules designed for commercial and industrial solar projects. Featuring advanced TOPCon and half-cell technology, they provide higher power output, improved durability, and stable performance, making them ideal for large-scale rooftop and ground-mounted solar systems.

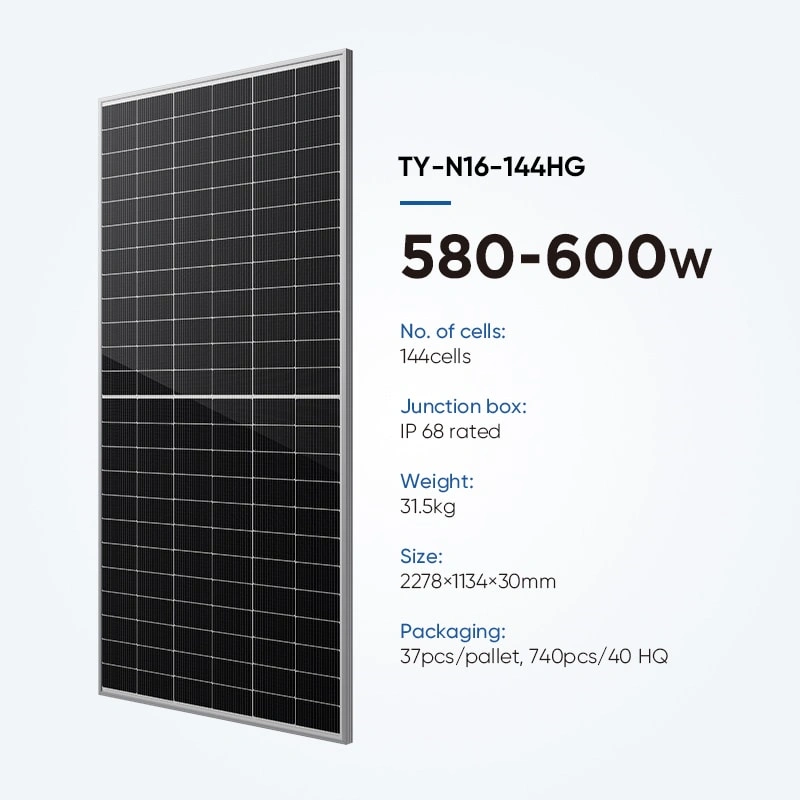

Model Number: TY-N16-144HG
Power Range: 580W-600W
Cell Type: N-Type Bifacial With Dual Glass
Size: 2278×1134×30mm
Warranty: 30 Years
Number of Cells: 144 (6x24)
DownloadInquire

NOTE：Please read the safety and installation manual before using the product. We reserve the right of final interpretation.

The specifications in this datasheet are subject to change without notice.

Detail Parameters

ELECTRICAL CHARACTERISTICS (STC) TY-N16-144HG

Maximum Power (Pm) W580585590595600
Power Tolerance (W)0~+50~+50~+50~+50~+5
Maximum Power Voltage (Vm)45.1545.3545.5545.7545.95
Maximum Power Current (Im)12.8512.912.9613.0113.06
Open Circuit Voltage (Voc)52.652.85353.253.4
Short Circuit Current (Isc)13.5713.6213.6713.7213.77
Module Efficiency22.522.622.82323.2

STC: AM=1.5, irradiance=1000W/m², module temperature=25°C

ELECTRICAL CHARACTERISTICS (NMOT)

Maximum Power (Pm) W437441445449453
Maximum Power Voltage (Vm)41.5441.7241.942.0842.26
Maximum Power Current (Im)10.5210.5710.6210.6710.72
Open Circuit Voltage (Voc)49.7349.9350.1350.3350.52
Short Circuit Current (Isc)10.9110.9611.0111.0611.11

NMOT: irradiance=800W/m², environment temperature=20°C, wind speed=1m/s

REAR SIDE POWER GAIN

5%Max Power609614620625630
Efficiency23.5723.7823.9824.1824.39
15%Max Power667673679684690
Efficiency25.8226.0426.2726.4926.71
25%Max Power725731738744750
Efficiency28.0728.3128.5528.7929.03

Scenario Application

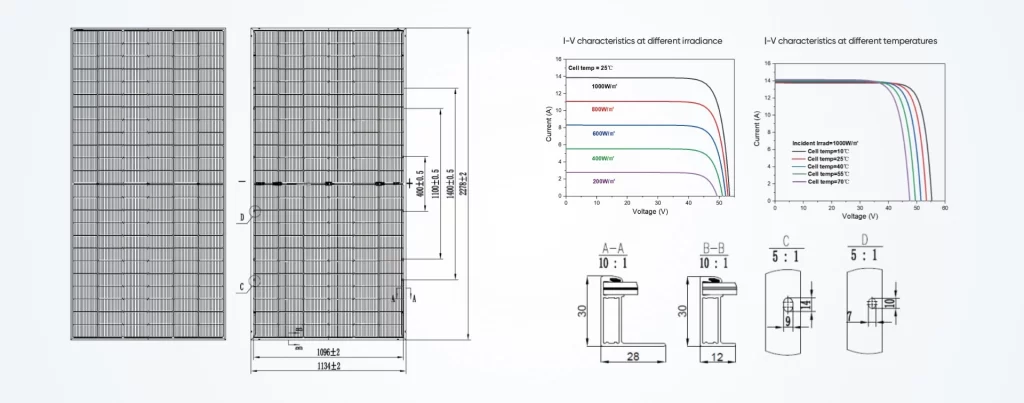

580W-600W Solar Panel Specifications

External Dimension (L×W×H)2278×1134×30mm
740 pcs31.5kg
Number of Cells144 (6×24)
Front Glass2.0mm AR-coating heat-strengthened glass
Rear Glass2.0mm heat-strengthened glass
FrameAnodized aluminum alloy, silver color
Junction BoxIP68
Output Cables4mm², 300mm or customized length
ConnectorMC4 compatible

Packing Configuration

Container40‘HC
Pieces per Pallet37 pcs
Packaging box Size2335×1145×1260mm
Pieces per Container740 pcs

FAQs

1. What are 580W-600W solar panels mainly used for?

580W-600W solar panels are mainly used in commercial, industrial, and utility-scale solar projects. Their high power output helps reduce installation costs and maximize energy generation for large-scale applications.

2. Are 580W-600W solar panels suitable for rooftop installations?

Yes. These panels can be installed on commercial rooftops, warehouses, factories, and large residential properties with sufficient roof space and structural support.

3. What is the efficiency of 580W-600W solar panels?

Most 580W-600W solar panels offer conversion efficiencies between 21% and 23%, depending on the technology used, such as TOPCon or bifacial cell technology.

4. Can 580W-600W solar panels work with hybrid inverters and battery systems?

Yes. 580W-600W solar panels are compatible with most modern hybrid solar inverters, lithium battery storage systems, and commercial energy storage solutions.

5. How many 580W-600W solar panels are needed for a commercial solar project?

The number of panels required depends on the total system size and energy demand. For example, a 100kW commercial solar system may require approximately 167-172 pieces of 580W-600W solar panels.
