Factory Direct 610W-630W Premium Efficiency Bifacial Monocrystalline Solar Panel

610W-630W solar panels are engineered to maximize energy production for large-scale solar installations. Featuring high-density cell design and advanced module technology, they help reduce BOS costs and improve overall system efficiency. These ultra-high-power modules are widely used in utility projects, industrial facilities, and large commercial applications where stable performance and higher energy yield are essential.

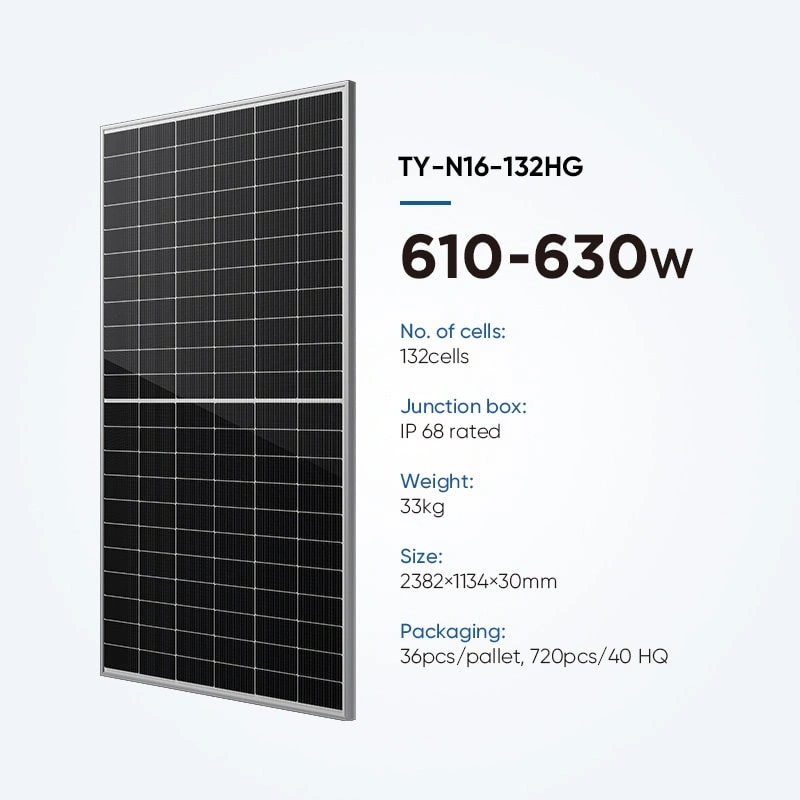

Model Number: TY-N16-132HG
Power Range: 610W-630W
Cell Type: N-Type Bifacial With Dual Glass
Size: 2382×1134×30mm
Warranty: 30 Years
Number of Cells: 2.0mm AR-coating heat-strengthened glass
DownloadInquire

NOTE：Please read the safety and installation manual before using the product. We reserve the right of final interpretation.

The specifications in this datasheet are subject to change without notice.

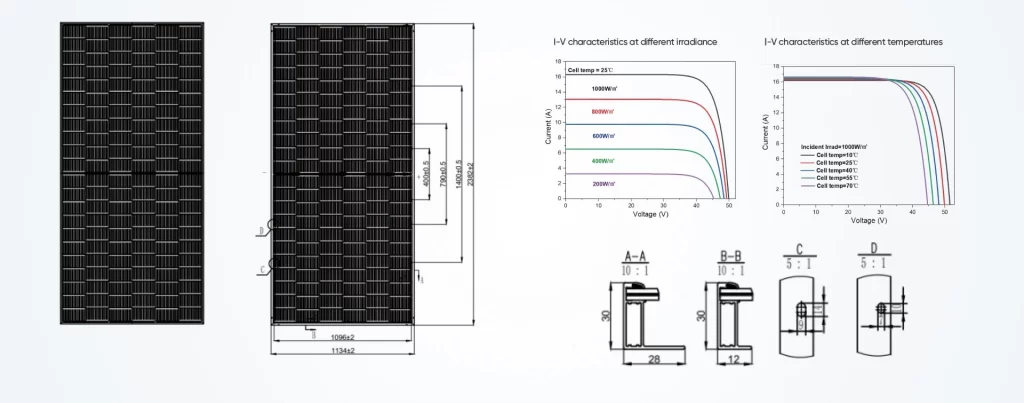

Detail Parameters

ELECTRICAL CHARACTERISTICS (STC) TY-N16-132HG

Maximum Power (Pm) W610615620625630
Power Tolerance (W)0~+50~+50~+50~+50~+5
Maximum Power Voltage (Vm)40.4640.640.7440.8841.02
Maximum Power Current (Im)15.0815.1515.2215.2915.36
Open Circuit Voltage (Voc)48.6848.8849.0849.2849.48
Short Circuit Current (Isc)15.9616.0216.0816.1416.2
Module Efficiency22.622.82323.123.3

STC: AM=1.5, irradiance=1000W/m², module temperature=25°C

ELECTRICAL CHARACTERISTICS (NMOT)

Maximum Power (Pm) W461465469473477
Maximum Power Voltage (Vm)3838.238.438.738.9
Maximum Power Current (Im)12.1412.1712.2112.2412.27
Open Circuit Voltage (Voc)46.146.446.646.847
Short Circuit Current (Isc)12.7612.7812.8112.8412.87

NMOT: irradiance=800W/m², environment temperature=20°C, wind speed=1m/s

REAR SIDE POWER GAIN

5%Max Power641646651656662
Efficiency24.792525.225.425.61
15%Max Power702707713719725
Efficiency27.1627.3827.627.8228.05
25%Max Power763769775781788
Efficiency29.5229.763030.2430.48

580W-600W Solar Panel Specifications

External Dimension (L×W×H)2382×1134×30mm
Weight33kg
Number of Cells132 (6×22)
Front Glass2.0mm AR-coating heat-strengthened glass
Rear Glass2.0mm heat-strengthened glass
FrameAnodized aluminum alloy, silver color
Junction BoxIP68
Output Cables4mm², 300mm or customized length
ConnectorMC4 compatible

Packing Configuration

Container40‘HC
Pieces per Pallet36 pcs
Packaging box Size2439×1145×1260×mm
Pieces per Container720 pcs

FAQs

1. Are 610W-630W solar panels suitable for utility-scale solar farms?

Yes. 610W-630W solar panels are specifically designed for utility-scale and large commercial solar projects where maximizing energy generation and reducing installation costs are key priorities.

2. Do 610W-630W solar panels help reduce system costs?

High-power modules can reduce the number of panels, mounting structures, cables, and installation labor required for a project, helping lower overall BOS (Balance of System) costs.

3. What cell technologies are used in 610W-630W solar panels?

Most 610W-630W modules use advanced technologies such as TOPCon, high-density cell layouts, half-cut cells, and multi-busbar designs to improve efficiency and reliability.

4. Can 610W-630W solar panels perform well in harsh environments?

Yes. These solar panels are designed to withstand challenging weather conditions, including high temperatures, strong wind loads, and heavy snow loads, making them suitable for various climates.

5. Why are 610W-630W solar panels popular for large commercial projects?

Their higher wattage allows developers to generate more electricity with fewer modules, improving land utilization and increasing the overall energy yield of large-scale solar systems.
