630W-650W Advanced High Power Monocrystalline Photovoltaic Solar Panel Module

630W-650W solar panels are ultra-high-output modules developed for next-generation solar power projects. Designed to support higher system capacity and improved installation efficiency, these modules offer excellent energy generation performance for utility plants, industrial facilities, and large ground-mounted systems. Their advanced cell architecture and reliable structural design help optimize long-term power production while reducing overall project costs.

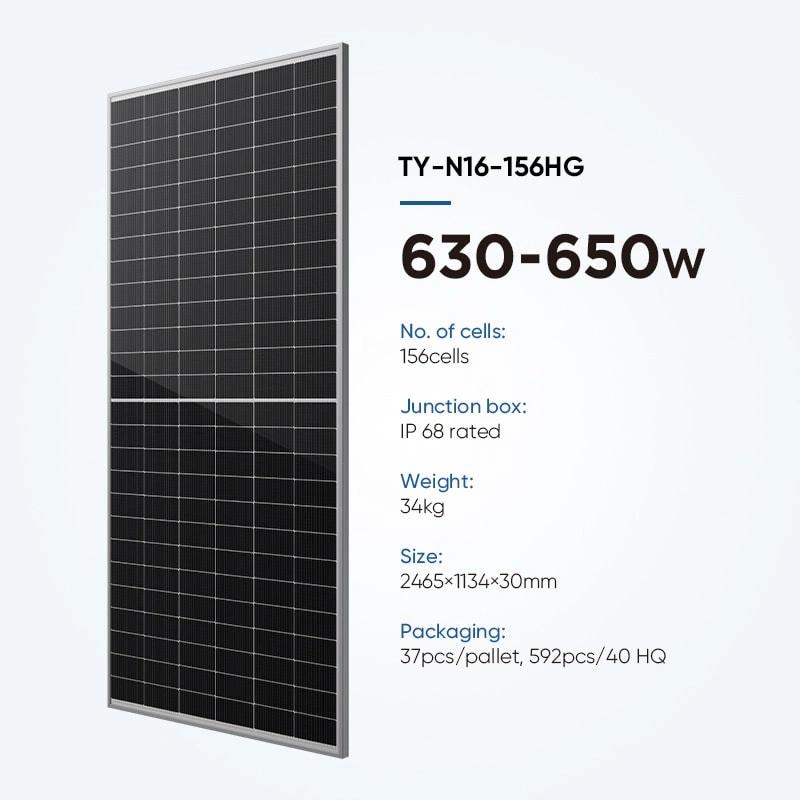

Model Number: TY-N16-156HG
Power Range: 630W-650W

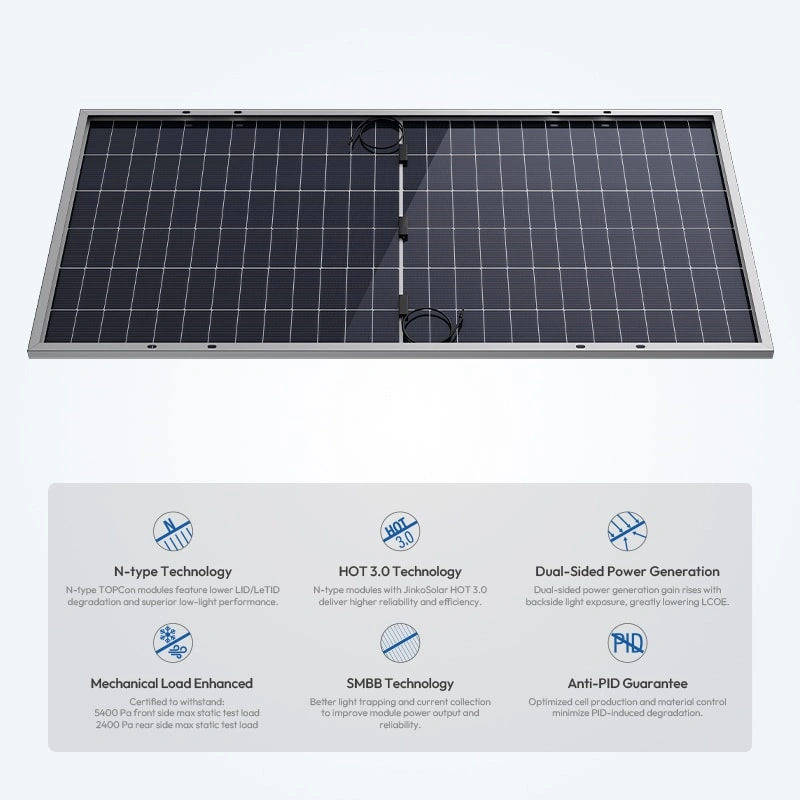

Cell Type: N-Type Bifacial Modules
Size: 2382×1134×30mm
Warranty: 30 Years
Number of Cells: 156 (6x26)
DownloadInquire

NOTE：Please read the safety and installation manual before using the product. We reserve the right of final interpretation.

The specifications in this datasheet are subject to change without notice.

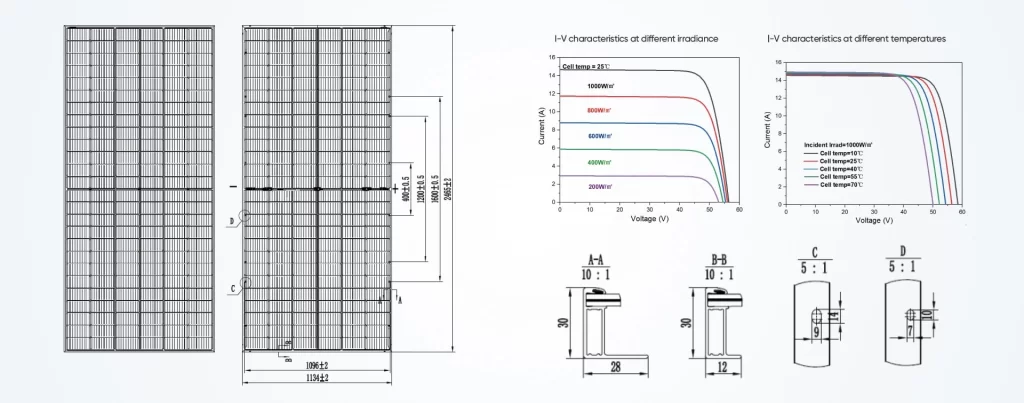

Detail Parameters

ELECTRICAL CHARACTERISTICS (STC) TY-N16-156HG

Maximum Power (Pm) W630635640645650
Power Tolerance (W)0~+50~+50~+50~+50~+5
Maximum Power Voltage (Vm)48.9649.1649.3649.5649.77
Maximum Power Current (Im)12.8712.9212.9713.0213.06
Open Circuit Voltage (Voc)57.0557.2557.4557.6557.85
Short Circuit Current (Isc)13.613.6513.713.7513.79
Module Efficiency22.522.722.923.123.3

STC: AM=1.5, irradiance=1000W/m², module temperature=25°C

ELECTRICAL CHARACTERISTICS (NMOT)

Maximum Power (Pm) W474478482486490
Maximum Power Voltage (Vm)44.9145.1145.3145.5145.71
Maximum Power Current (Im)10.5610.610.6410.6810.72
Open Circuit Voltage (Voc)53.9454.1454.3454.5454.73
Short Circuit Current (Isc)10.961111.0411.0811.12

NMOT: irradiance=800W/m², environment temperature=20°C, wind speed=1m/s

REAR SIDE POWER GAIN

5%Max Power662667672677683
Efficiency23.66%23.85%24.04%24.23%24.42%
15%Max Power725730736742748
Efficiency25.92%26.12%26.33%26.54%26.74%
25%Max Power788794800806813
Efficiency28.17%28.40%28.62%28.84%29.07%

580W-600W Solar Panel Specifications

External Dimension (L×W×H)2465×1134×30mm
Weight34kg
Number of Cells156 (6×26)
Front Glass2.0mm AR-coating heat-strengthened glass
Rear Glass2.0mm heat-strengthened glass
FrameAnodized aluminum alloy, silver color
Junction BoxIP68
Output Cables4mm², 300mm or customized length
ConnectorMC4 compatible

Packing Configuration

Container40‘HC
Pieces per Pallet37 pcs
Packaging box Size2522×1145×1260mm
Pieces per Container592 pcs

FAQs

1. What makes 630W-650W solar panels different from lower wattage modules?

630W-650W solar panels generate more electricity per module, allowing solar projects to achieve higher system capacity with fewer panels and improved installation efficiency.

2. Are 630W-650W solar panels suitable for ground-mounted solar systems?

Yes. These ultra-high-power modules are widely used in ground-mounted and utility-scale solar projects where large installation areas and maximum energy production are required.

3. Do 630W-650W solar panels require special mounting structures?

In some cases, larger and heavier modules may require compatible mounting systems designed for high-power solar panels. Professional system design is recommended for optimal safety and performance.

4. How do 630W-650W solar panels improve project efficiency?

By increasing power output per module, these panels can reduce installation time, lower cable usage, and improve overall system efficiency for large-scale solar projects.

5. Are 630W-650W solar panels compatible with modern solar inverters?

Yes. Most modern commercial and utility-scale inverters are compatible with 630W-650W solar panels, especially in high-voltage solar power systems.
