450W-470W High Efficiency Monocrystalline PV Module Solar Panel Units

Our 450W-470W Solar Panels feature high-efficiency solar cell technology, stable power output, and long-lasting performance for residential and commercial solar projects. Designed for rooftop solar systems, these PV modules offer low degradation, strong durability, and reliable clean energy generation to help reduce electricity costs and improve energy efficiency.

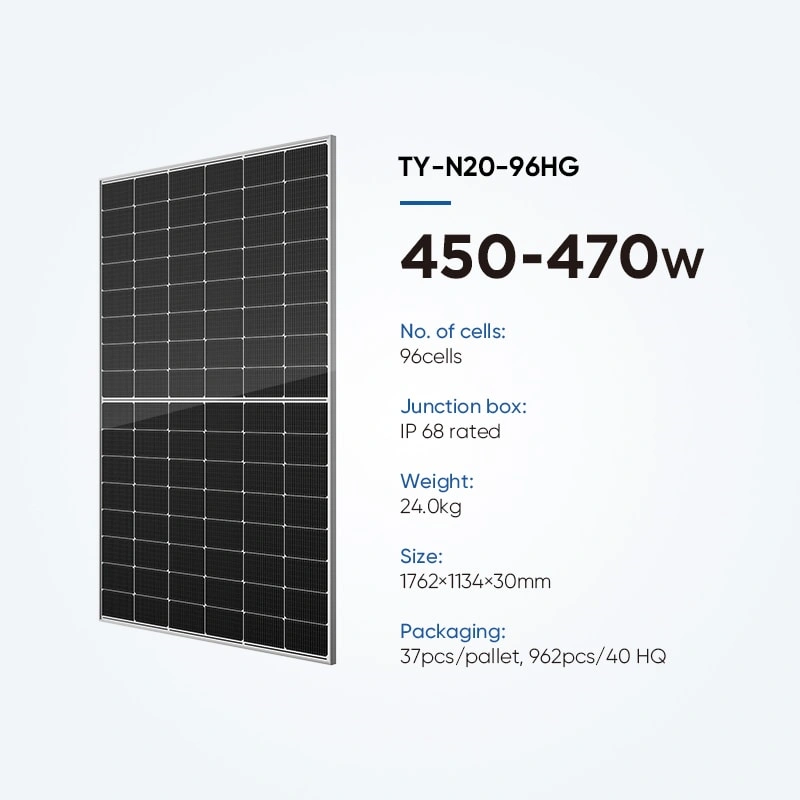

Model Number: TY-N20-96HG
Power Range: 450W-470W

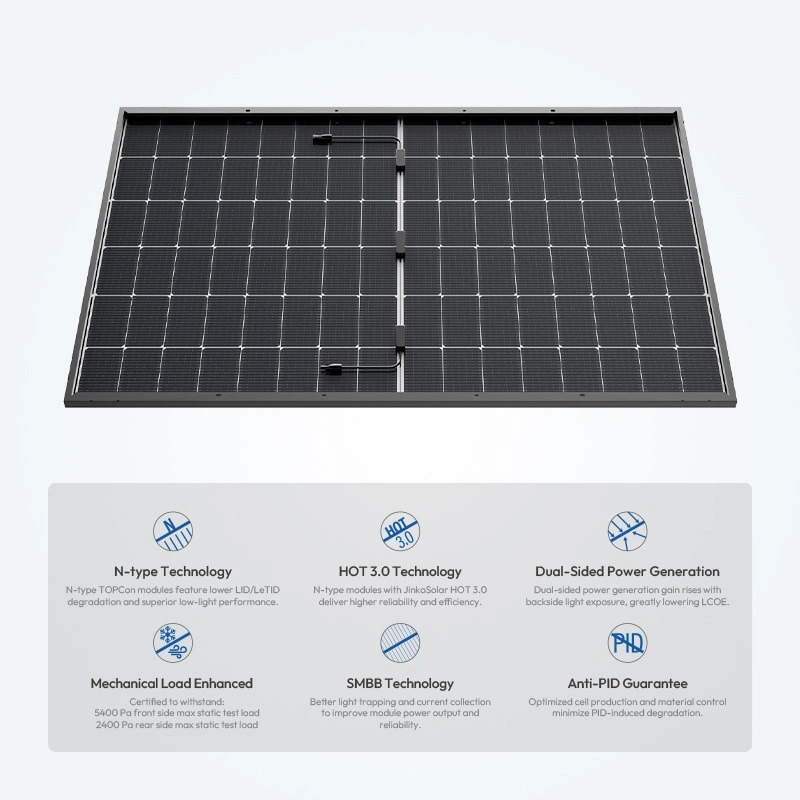

Cell Type: N- type Mono-crystalline
Size: 1762×1134×30mm
Warranty: 30 Years
No. of cells: 96(48×2)
DownloadInquire

NOTE：Please read the safety and installation manual before using the product. We reserve the right of final interpretation.

The specifications in this datasheet are subject to change without notice.

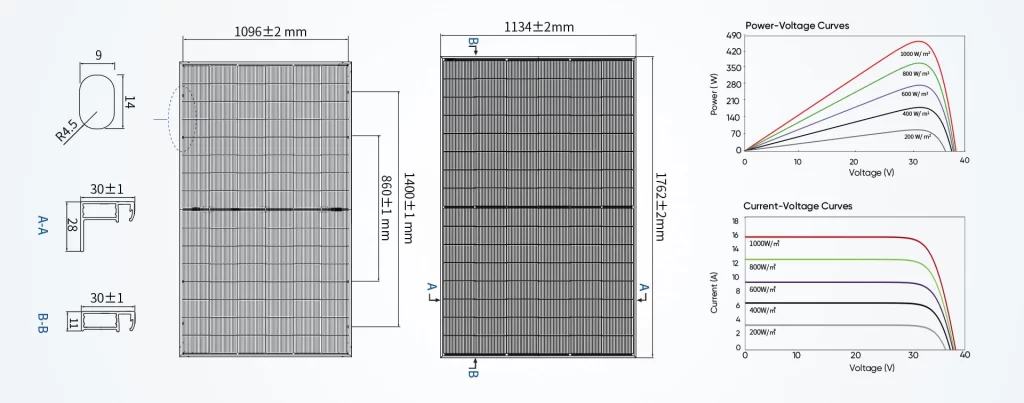

Detail Parameters

ELECTRICAL CHARACTERISTICS (STC) TY-N20-96HG

Maximum Power (Pm) W450455460465470
Maximum Power Voltage (Vm)30.5330.7731.0031.2331.46
Maximum Power Current (Im)14.7414.7914.8414.8914.94
Open Circuit Voltage (Voc)36.1936.3636.5336.7036.87
Short Circuit Current (Isc)15.6515.7015.7515.8015.85
Module Efficiency22.5222.7723.0223.2723.52

STC: AM=1.5, irradiance=1000W/m², module temperature=25°C

ELECTRICAL CHARACTERISTICS (BNPI)

Maximum Power (Pm) W498504509515520
Maximum Power Voltage (Vm)30.5330.773131.2331.46
Maximum Power Current (Im)16.3216.3716.4316.4816.54
Open Circuit Voltage (Voc)36.1936.3636.5336.736.87
Short Circuit Current (Isc)17.3217.3817.4417.4917.55

BNPI: Irradiance: front 1000W/m², rear 135W/m², Cell Temperature 25°C, AM=1.5.

*Power measurement tolerance: ±3%.

Scenario Application

450W-470W Solar Panel Specifications

ItemSpecification
Cell TypeN-type Mono-crystalline
No. of cells96 (48×2)
Dimensions1762×1134×30 mm
Weight24.0 kg
Front Glass2.0 mm, Anti-reflection Coating
Back Glass2.0 mm, Heat Strengthened Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Protection ClassClass II
IEC Fire TypeClass C
Output Cables (Including Connector)4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length

Packing Configuration

Container40‘HC
Pieces per Pallet37 pcs
Pallet Dimensions1792×1140×1249 mm
Pieces per Container962 pcs

FAQs

1. What are 450W-470W solar panels best used for?

450W-470W solar panels are widely used in residential rooftops, commercial buildings, and small industrial solar projects. Their higher wattage helps reduce the number of panels needed, making them ideal for projects with limited installation space.

2. What is the efficiency of a 450W-470W solar panel?

Most 450W-470W solar panels have an efficiency range of approximately 20%-22%, depending on the cell technology, such as TOPCon or PERC.

3. Are 450W-470W solar panels suitable for residential rooftops?

Yes. These panels are designed for both residential and commercial applications. They offer higher power output, improved efficiency, and better space utilization compared to lower-wattage modules.

4. Are 450W-470W solar panels compatible with hybrid or off-grid systems?

Yes. These panels are commonly used with hybrid solar systems, off-grid solar solutions, and battery energy storage systems. They can work with most mainstream solar inverters and lithium battery systems.

5. What is the difference between 450W and 470W solar panels?

The main difference is the power output. A 470W panel can generate slightly more electricity under the same sunlight conditions, which may reduce the total number of panels required for a project.
