Private Label 100Ah High Voltage Stack Lithium Battery Solution

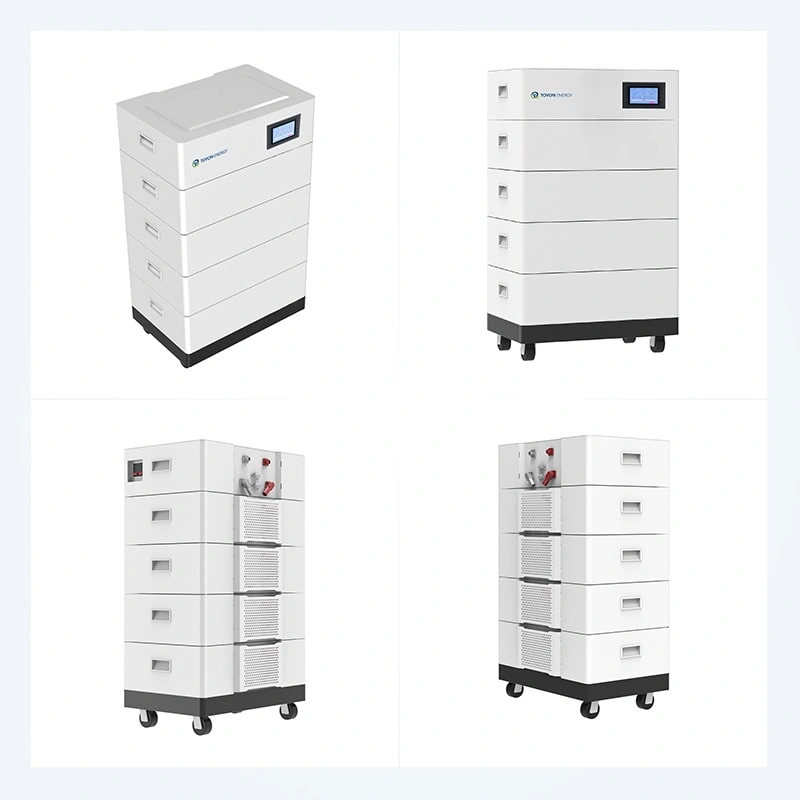

The 100Ah High Voltage Stack Lithium Battery features a modular and scalable design for residential and commercial energy storage systems. Built with safe and reliable LFP technology, it offers over 6000 cycle life, stable performance, easy installation, and seamless compatibility with hybrid and off-grid solar inverters.

Battery Capacity: 100Ah
Battery Type: LFP
lnstallation: Floor Installation
Waranty: 5 or 10 years(optional)
DownloadInquire

Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.

The specifications in this datasheet are subject to change without notice.

Battery Features

  • Modular design, easy to expand the capacity, supports up to 8 battery packs in series, with optional energy of 9.6kwh~38.4kwh
  • LCD display to monitor the operating status of the battery in real time
  • Universal wheel design at the bottom for easy movement and use
  • Patented modular plug design, no internal wiring required, highly flexible and easy to install
  • Grade A lithium iron phosphate (LFP) battery cell with 6000 cycles, high safety and long service life
  • Built-in BMS intelligent protection function, compatible with leading high-voltage inverters
  • Achieving the maximum efficiency through the high-voltage series connection, with high-power emergency backup and off-grid functions

Product Description

Product TypeHVM45S100BLHVM60S100BLHVM75S100BLHVM90S100BLHVM105S100BLHVM120S100BL
Number of Modules345678
Battery Capacity100Ah100Ah100Ah100Ah100Ah100Ah
Battery Energy14.4KWh19.2KWh24KWh28.8KWh33.6KWh38.4KWh
Size (L×W×H) mm570×380×833570×380×1000570×380×1167570×380×1334570×380×1501570×380×1668
Weight148Kg189Kg230Kg271Kg312Kg353Kg
Standard Charge Current20A20A20A20A20A20A
Standard Discharge Current20A20A20A20A20A20A
Features
Battery TypeLFP
Cycle Life≥ 6000 times @ 80% DOD, 25°C
Nominal Voltage144V192V240V288V336V384V
Operating Voltage Range160-438V
IP ProtectionIP21
InstallationFloor installation
Charging Temperature0~60°C
Discharge Temperature-10~60°C
Conventional
BMS Monitoring ParametersSOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication PortRS485/CAN
Warranty5 or 10 years (optional)

Fields of Application

High Voltage Energy Storage Batteries can be stacked, and the main use areas are as follows:

  • Standby power
  • Home energy storage
  • Machine shop
  • Solar storage

FAQs

1. What applications is the 100Ah high voltage lithium battery suitable for?

It is widely used in residential solar systems, commercial energy storage, backup power systems, and off-grid solar solutions.

2. Can the battery capacity be expanded later?

Yes. The modular stack design allows flexible expansion to meet increasing energy storage requirements.

3. What are the advantages of a stackable battery design?

Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power oThe stackable structure saves installation space, simplifies maintenance, and allows users to increase capacity more easily.

4. Is the battery suitable for high voltage energy storage systems?

Yes. It is specially designed for high voltage applications, improving energy efficiency and inverter compatibility.

5. Can multiple battery modules be connected together?

Yes. The modular system supports parallel expansion to meet larger energy storage demands.

6. Is it compatible with solar PV systems?

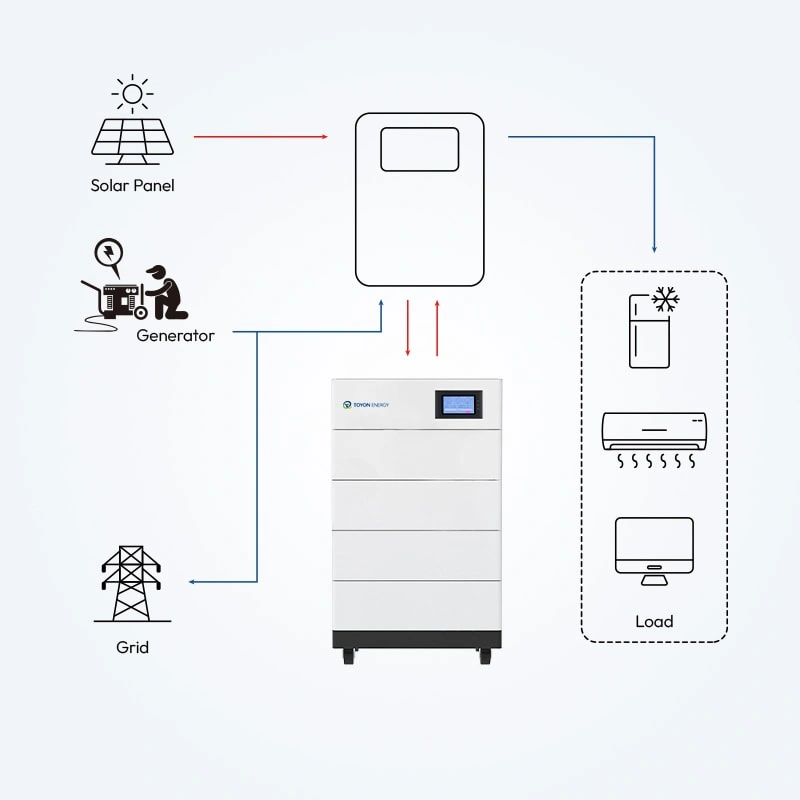

Yes. It works efficiently with solar panels and hybrid inverters for solar energy storage applications.
