| Product Type: | Wall-mounted Lithium Battery |
| Capacity Options: | 100Ah / 200Ah |
| Battery Chemistry: | LiFePO4 Lithium Battery |
| Cycle Life: | ≥ 6000 times @ 80% DOD, 25 °C |
| Cells In Series: | 16S |

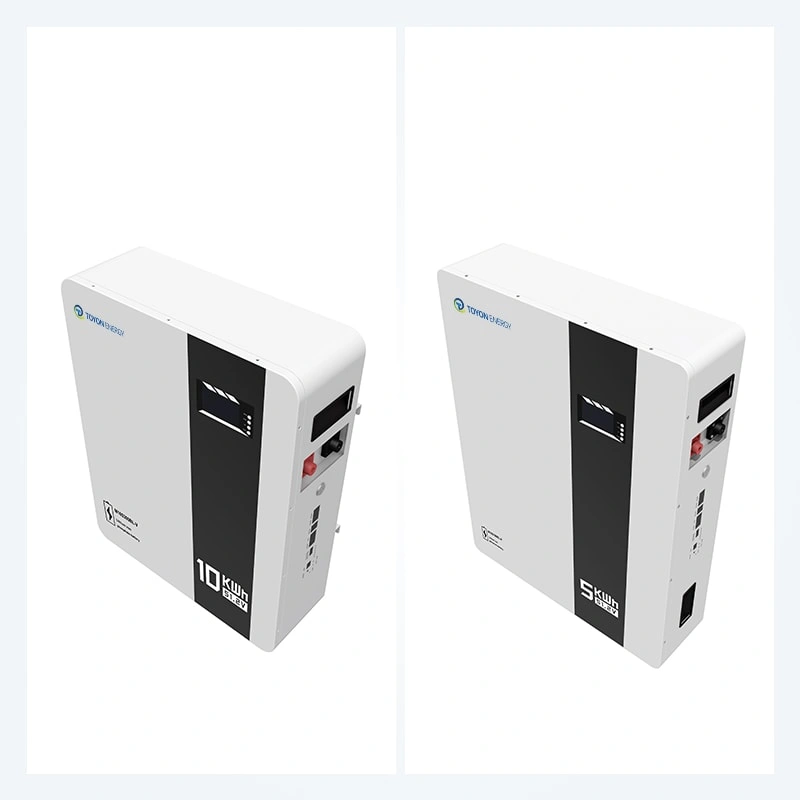

Custom 51.2V 100Ah 200Ah Wall-mounted Lithium Battery for Home Energy Systems
The TY-LVW3 51.2V is a 51.2V 200Ah 10kWh wall-mounted LiFePO4 battery designed for residential energy storage. It delivers over 6,000 cycles at 90% depth of discharge (DoD) with a 10-year design life, supports most 48V inverters, and features a high-eciency DC-coupled architecture.
Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.
The specifications in this datasheet are subject to change without notice.
Features
Flexible Expansion
- Up to 16 units in parallel
- Capacity: 5.12-163.8 kWh
1C Discharge Rate
- Supports multiple loads simultaneously for reliable power delivery
Automatic Self-heating
- Operating temperature–20°C to 55°C (optional)
Ultra Safe
- Intelligent fire extinguishing system detects and suppresses fire within 5s (optional)
Easy Installation
- Wall-mounted for optimized space utilization
Smart Management
- Real-time monitoring, remote control and OTA updates
Product Description
| 100Ah | 200Ah | |
| Product Model | TY-LVW3 51.2V | TY-LVW3 51.2V |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.12 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 100 |
| Maximum Discharge Current (A) | 100 | 100 |
| Features | ||
| Cycle Life | ≥6000 times @ 80% DOD, 25 °C | ≥6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Charging Temperature | 0~60 °C | 0~60 °C |
| Discharge Temperature | -10~65 °C | -10~65 °C |
| How It Is Displayed | LCD display | LCD display |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||
| Product Dimensions (L×W×Hmm) | 560×440×151 | 680×520×151 |
| Net Weight (Kg) | 44 | 80 |
| Packing Dimensions (L×W×Hmm) | 632×512×255 | 755×595×340 |
| Gross Weight (Kg) | 50 | 94 |
FAQs
1. What is the difference between 100Ah and 200Ah wall-mounted batteries? difference between 280Ah and 314Ah lithium batteries?
The 200Ah model offers larger energy storage capacity and longer backup duration, while the 100Ah version is more suitable for basic residential energy storage needs.
2. Why are wall-mounted lithium batteries popular for home energy systems?
Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.
3. Can a 51.2V 100Ah battery support essential home backup power?
Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power outages.
4. Is the 200Ah model better for higher daily electricity consumption?
Yes. The 200Ah battery is designed for users with greater energy demand or longer backup time requirements.

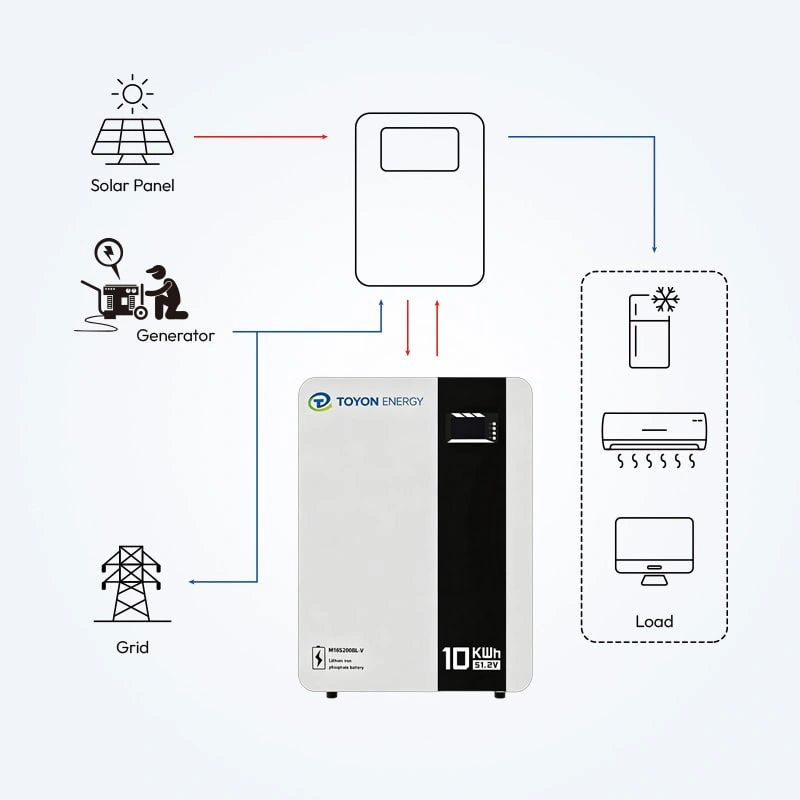

5. Do wall-mounted lithium batteries support solar charging?
Yes. Both 100Ah and 200Ah models are commonly used with solar inverters and photovoltaic systems for solar energy storage.
6. Can multiple wall-mounted batteries be expanded together?
Yes. Many wall-mounted lithium battery systems support parallel connection, allowing users to increase storage capacity as energy demand grows.
