| Product Type: | Rack-mounted Battery |
| Capacity Options: | 100Ah / 200Ah |
| Battery Chemistry: | LiFePO4 Lithium Battery |
| Cycle Life: | ≥ 6000 times @ 80% DOD, 25 °C |

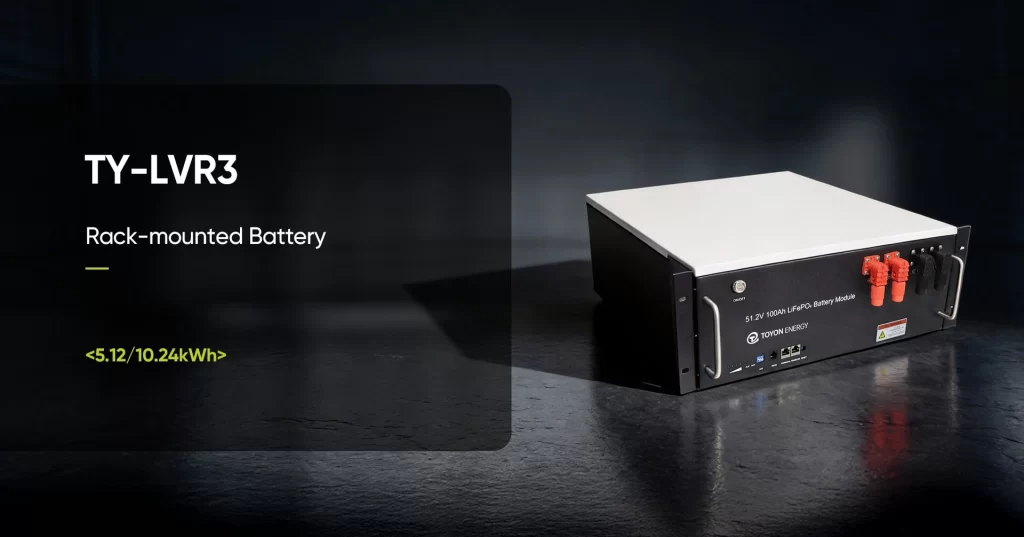

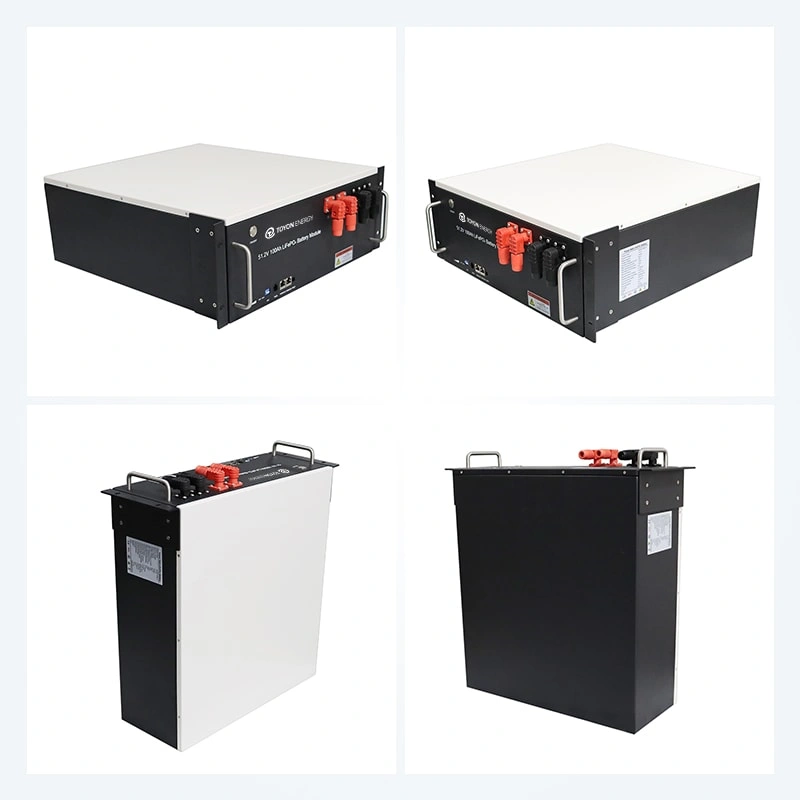

Distributor 51.2V 100Ah 200Ah Rack-mounted Lithium Battery Solution
The TY-LVR3 51.2V is designed for residential and small commercial applications. It supports up to 16 units in parallel, with an energy capacity ranging from 5.12 kWh to 163.8 kWh. Featuring a 1C discharge rate, high cycle life, and extended lifespan, it ensures reliable and worry-free power supply.
Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.
The specifications in this datasheet are subject to change without notice.
Features
Flexible Expansion
- Up to 16 units in parallel
- Capacity: 5.12-163.8 kWh
1C Discharge Rate
- Supports multiple loads simultaneously for reliable power delivery
Automatic Self-heating
- Operating temperature–20°C to 55°C (optional)
Ultra Safe
- Intelligent fire extinguishing system detects and suppresses fire within 5s (optional)
Easy Installation
- Rack-mounted for optimized space utilization
Smart Management
- Real-time monitoring, remote control and OTA updates
Product Description
| 100Ah | 200Ah | |
| Product Model | TY-LVR3 51.2V | TY-LVR3 51.2V |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.0 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 200 |
| Maximum Discharge Current (A) | 100 | 200 |
| Features | ||
| Cycle Life | ≥6000 times @ 80% DOD, 25 °C | ≥6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485/CAN | RS485/CAN |
| Charging Temperature | 0~60 °C | 0~60 °C |
| Discharge Temperature | -10~65 °C | -10~65 °C |
| How It Is Displayed | / | / |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||

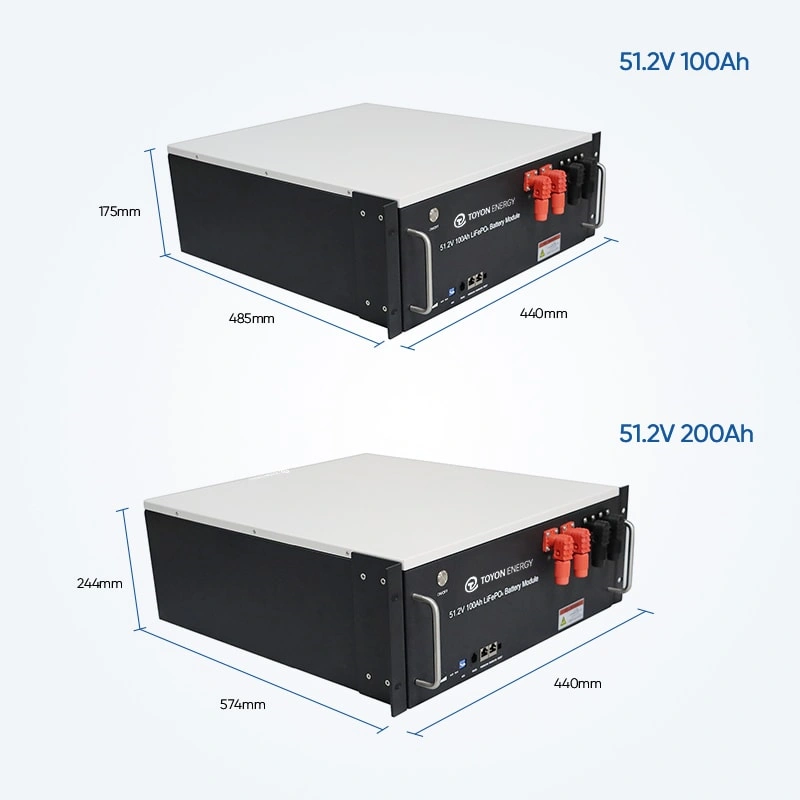

| Product Dimensions (L×W×Hmm) | 485×440×175 | 574×440×244 |
| Net Weight (Kg) | 44 | 79 |
| Packing Dimensions (L×W×Hmm) | 550×525×230 | 755×545×550 |
| Gross Weight (Kg) | 47 | 79 |
FAQs
1. What is the difference between 100Ah and 200Ah wall-mounted batteries? difference between 280Ah and 314Ah lithium batteries?
The 200Ah model offers larger energy storage capacity and longer backup duration, while the 100Ah version is more suitable for basic residential energy storage needs.
2. Why are wall-mounted lithium batteries popular for home energy systems?
Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.
3. Can a 51.2V 100Ah battery support essential home backup power?
Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power outages.
4. Is the 200Ah model better for higher daily electricity consumption?
Yes. The 200Ah battery is designed for users with greater energy demand or longer backup time requirements.
5. Do wall-mounted lithium batteries support solar charging?
Yes. Both 100Ah and 200Ah models are commonly used with solar inverters and photovoltaic systems for solar energy storage.
6. Can multiple wall-mounted batteries be expanded together?
Yes. Many wall-mounted lithium battery systems support parallel connection, allowing users to increase storage capacity as energy demand grows.
