Commercial 100Ah High Voltage Lithium Battery Energy Storage System

100Ah High Voltage Lithium Battery is designed for advanced residential, commercial, and industrial energy storage applications. Featuring high energy density, stable performance, and efficient power management, it provides reliable energy storage for solar systems and backup power solutions. With scalable high-voltage architecture and long cycle life, this battery system is ideal for maximizing energy efficiency, reducing electricity costs, and supporting modern smart energy applications.

Battery Capacity: 100Ah
Battery Type: LFP
lnstallation: Cabinet Holding
Waranty: 5 or 10 years(optional)
DownloadInquire

Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.

The specifications in this datasheet are subject to change without notice.

Battery Features

  • Original A-grade lithium iron phosphate battery cell has high safety and reliability
  • Intelligent integrated BMS, all-round protection strategy and fault detection
  • Modular design, parallel expansion, flexible choice of voltage and capacity
  • Large capacity, high charging and discharging efficiency, more than 6000 cycle life
  • Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status
  • Bottom tripod design, standard cabinet for easy installation and easy maintenance
  • ON/OFF switch control output
  • LCD display, dynamic display of system operating status data

Product Description

Product TypeHVM64S100BL-UHVM96S100BL-UHVM128S100BL-UHVM160S100BL-U
Number of Modules46810
Battery Capacity100Ah100Ah100Ah100Ah
Battery Energy20.48KWh30.72KWh40.96KWh51.2KWh
Size (L×W×H) mm548×584×1500548×584×1500548×584×1950548×584×2300
Weight235Kg384Kg425Kg510Kg
Standard Charge Current20A20A20A20A
Standard Discharge Current20A20A20A20A
Features
Battery TypeLFP
Cycle Life≥ 6000 times @ 80% DOD, 25°C
Nominal Voltage204.8V307.2V409.6V512V
Operating Voltage Range160-584V
IP ProtectionIP21
InstallationCabinet Holding
Charging Temperature0~60°C
Discharge Temperature-10~60°C
Conventional
BMS Monitoring ParametersSOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication PortRS485/CAN
Warranty5 or 10 years (optional)

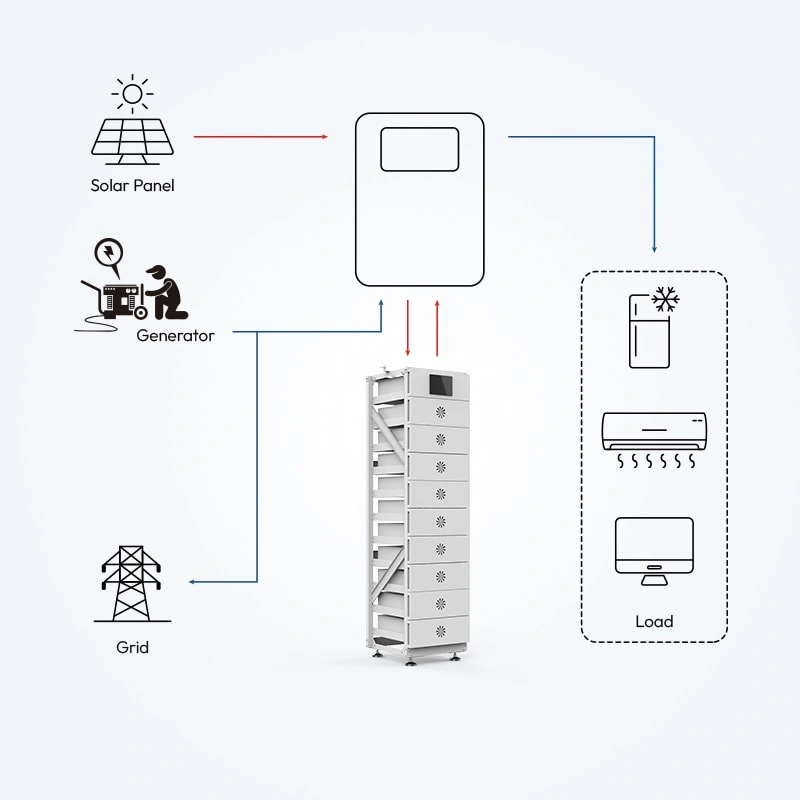

Fields of Application

  • Standby power
  • Home energy storage
  • Machine shop
  • Solar storage

FAQs

1. What is the difference between 100Ah and 200Ah wall-mounted batteries? difference between 280Ah and 314Ah lithium batteries?

The 200Ah model offers larger energy storage capacity and longer backup duration, while the 100Ah version is more suitable for basic residential energy storage needs.

2. Why are wall-mounted lithium batteries popular for home energy systems?

Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.

3. Can a 51.2V 100Ah battery support essential home backup power?

Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power outages.

4. Is the 200Ah model better for higher daily electricity consumption?

Yes. The 200Ah battery is designed for users with greater energy demand or longer backup time requirements.

5. Do wall-mounted lithium batteries support solar charging?

Yes. Both 100Ah and 200Ah models are commonly used with solar inverters and photovoltaic systems for solar energy storage.

6. Can multiple wall-mounted batteries be expanded together?

Yes. Many wall-mounted lithium battery systems support parallel connection, allowing users to increase storage capacity as energy demand grows.
