HF Series 3.6KW 6.2KW 11KW High Performance Off Grid Solar Inverter Wholesale Units

Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.

The specifications in this datasheet are subject to change without notice.

Features

Automatic restart for lithium batteries, easier charging

PF1.0, high efficiency, low loss, energy saving

Optional touch screen panel

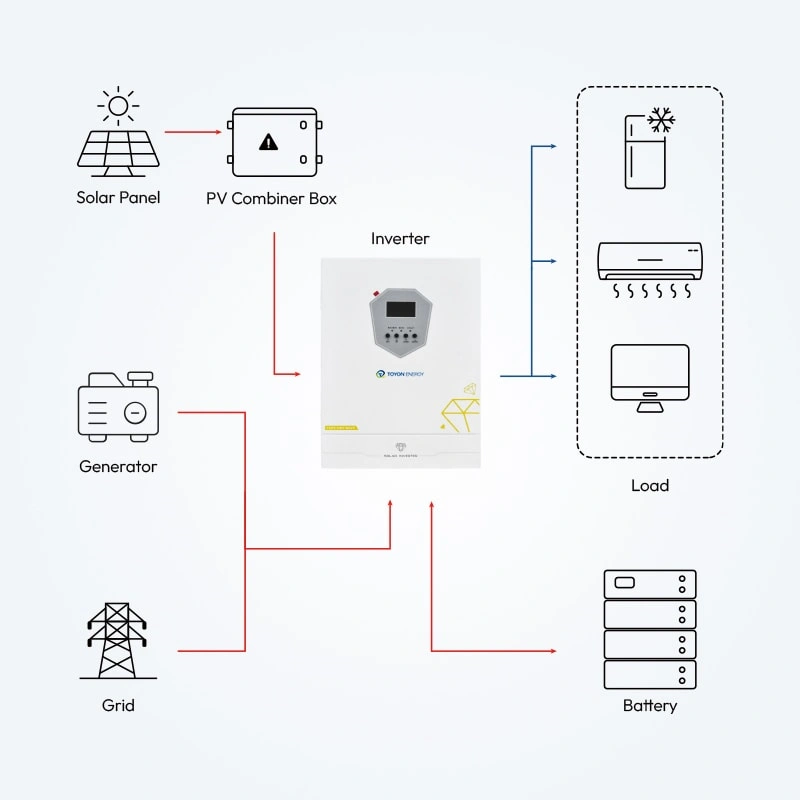

PV grid-connected for electricity cost saving

Adjustable charging voltage for different batteries

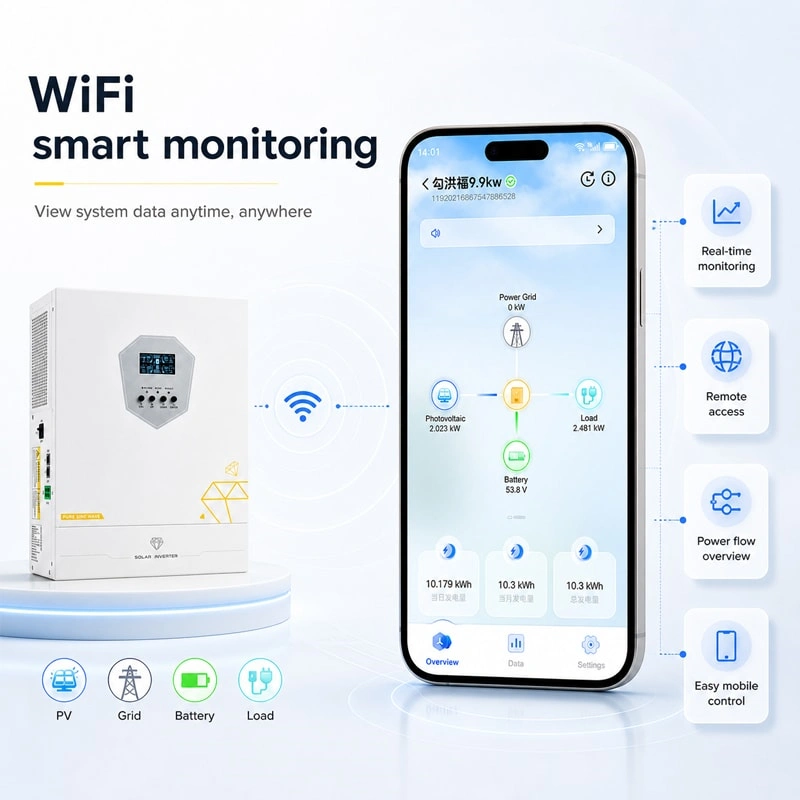

External WIFI for real-time monitoring

CT anti-backflow function, auto grid detection

Built-in lithium battery BMS function

Basic Parameters

Model	3624MH	6248MH	11048MH
Input
Rated Input Voltage	220/230/240VAC
Voltage Range (Normal)	90–280VAC±3V	90–280VAC±3V	90–280VAC±3V
Voltage Range (UPS)	170–280VAC±3V
Frequency Range	50/60Hz auto
Output
Battery Inverter Power	3600W	6200W	11000W
PV Inverter Power	3600W	6200W	12000W
Output Voltage	230VAC±5%
Output Frequency	50Hz±0.1%
Waveform	Pure Sine Wave
Transfer Time (Adjustable)	10ms / 20ms	10ms / 20ms	10ms / 20ms
Peak Power	12400VA	22000VA	72000VA
Overload Capacity (Battery Mode)	11s@105–150% load 2s@150–200% load 400ms@>200% load
Nominal Output Current	26.9A	15.7A	47.8A
Power Factor	>0.99
Max Conversion Efficiency (DC/AC)	>98%
Battery & Charging
Battery Rated Voltage	24VDC	48VDC	48VDC
Constant Voltage Charging (Adjustable)	28.2VDC	56.4VDC	56.4VDC
Float Charging Voltage (Adjustable)	27VDC	54VDC	54VDC
PV Charging Type	Dual MPPT	MPPT	MPPT
Max PV Input Power	5000W	8500W	2×5500W
MPPT Voltage Range	60–500VDC	90–500VDC	60–500VDC
Max PV Input Voltage	500VDC
Max PV Input Current	15A	27A	27A/27A
Max PV Charging Current	120A	120A	150A
Max AC Charging Current	100A	150A	100A
Max Charging Current	120A	120A	150A
Grid-Connected
Grid Feed Voltage	100–280VAC
Grid Feed Frequency	47–53Hz / 57–62Hz
Communication & Environment
Display	LCD
Communication	RS232 (2400bps), WIFI, BMS, CT
Parallel Function	No
Operating Temperature	-10°C ~ +50°C
Storage Temperature	-15°C ~ +60°C
Humidity	20%–95% non-condensing
Noise	≤50dB
Altitude	≤1000m (derate up to 4000m)
Dimensions (W×D×H)	355×294×118 mm	440.3×309×125.5 mm	585×360×164 mm

1. Is there any difference in efficiency between 3.6KW, 6.2KW, and 11KW models?

All HF Series models maintain high conversion efficiency, but larger models like 6.2KW and 11KW may perform better under higher load conditions with improved system optimization.

2. How do I choose between 3.6KW, 6.2KW, and 11KW?

If your energy use is basic, 3.6KW is enough. For standard family living with appliances like air conditioners and pumps, 6.2KW is recommended. For heavy usage or multiple high-power devices, 11KW is the best option.

3. Can 3.6KW, 6.2KW, and 11KW be used in the same system design?

They are not typically mixed in one system. Each model is selected based on total load demand, and system design is usually built around a single capacity level.

4. Do all three models support the same solar system configuration?

Yes, HF Series 3.6KW, 6.2KW, and 11KW are designed to work with similar off-grid solar configurations, but the solar array and battery size must match the selected inverter capacity.

5. Which model is most popular for residential off-grid systems?

The 6.2KW model is generally the most popular choice because it balances cost, capacity, and the ability to run most household appliances comfortably.
