OSP Series 6.5KW-10KW Advanced Low Voltage Off Grid Solar Energy Inverter

OSP Series 6.5KW/10KW Split Phase Off-Grid Inverters are engineered for high-demand off-grid power systems that require reliable dual-voltage output. Designed with split-phase technology, they can efficiently support a wide range of residential and light commercial electrical loads, including large household appliances and power tools. Featuring advanced system control and stable energy conversion, the OSP Series is an ideal solution for independent solar power applications and backup energy systems.

Product Series: OSP Series Split Phase Off-Grid Inverter
Power Range: 6.5KW / 10KW
Battery Voltage Range: 40~60Vdc
Output Wave Form: Pure sine wave
Application: Residential & Light Commercial Off-Grid Systems
DownloadInquire

Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.

The specifications in this datasheet are subject to change without notice.

Features

Efficiency

  • Advanced MPPT technology with up to 99.9% efficiency
  • Up to 22+22A PV input current

Reliable

  • Outputs high quality pure sine wave AC power
  • Up to 10kW output power

Safety

  • Comprehensive security from hardware to software
  • Multiple safety approvals

User-Friendly

  • Industrial design with a modern aesthetic look
  • Easy to install and simple to use

All-in-One

  • Up to 200A charging current
  • Support Li-ion battery BMS communication

Intelligent

  • Exclusive Li-ion battery BMS dual activation
  • Time-slot function to save cost with peak-valley

Basic Parameters

ModelSPI-6.5K-UPSPI-8K-UPSPI-10K-UP
INVERTER OUTPUT
Rated Output Power6500W8,000W10,000W
Max. Peak Power13,000 VA16,000W20,000W
Rated Output Voltage120, single-phase / 240V, split-phase
Rated AC Frequency50/60Hz
WaveformPure sine wave
Switch Time10ms (typical value)
Parallel Capacity1~6 units
BATTERY
Battery TypeLithium-ion battery/lead-acid battery user-defined batteryLi-ion / Lead-acid / User-defined
Rated Battery Voltage48Vdc
Battery Voltage Range40~60Vdc
Max. Mains / Generator Charging Current80A100A120A
Max. Hybrid Charging Current140A180A200A
PV INPUT
Num. of MPPT Trackers2
Max. PV Array Power5000W+5000W5,500W+5,500W
Max. Input Current18+18A22A+22A
Max. Open Circuit Voltage550Vdc+550Vdc500Vdc+500Vdc
MPPT Voltage Range150~450Vdc125~425Vdc
MAINS / GENERATOR INPUT
Input Voltage Range65~140Vac90~140Vac
Frequency Range50/60Hz
Bypass Overload Current40A63A
EFFICIENCY
MPPT Tracking Efficiency99.90%
Max. Battery Inverter Efficiency93%92%
GENERAL

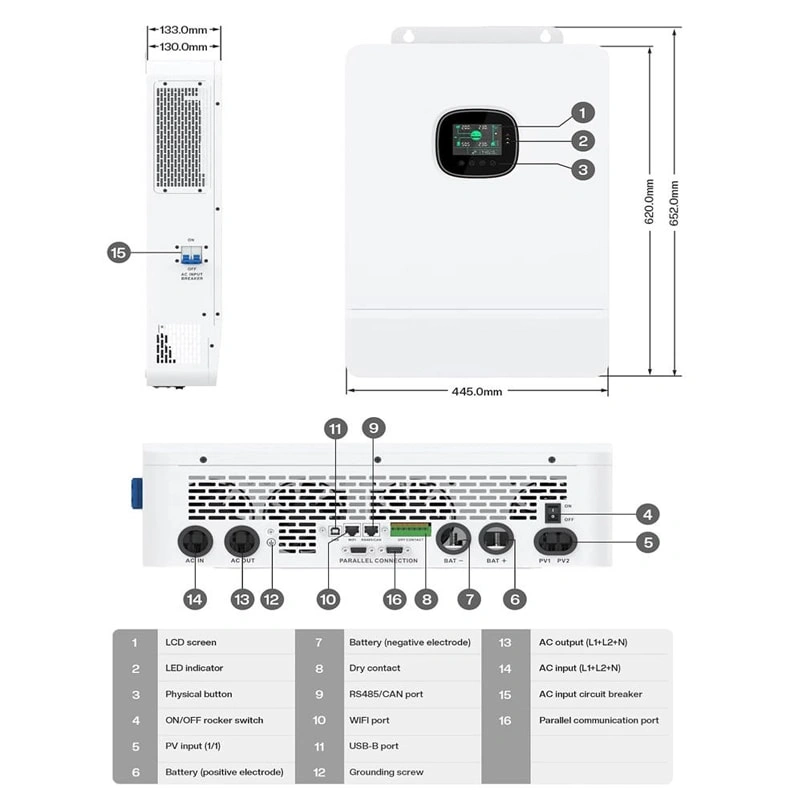

Dimension584.6410133 mm620445130mm
Weight18.9 kg27kg
ProtectionIP20, for indoor use only
Operating Temperature Range-10°C-55°C, >45°C derating
Noise<60 dB
Cooling MethodIntelligent fan
Warranty18 Months
COMMUNICATION

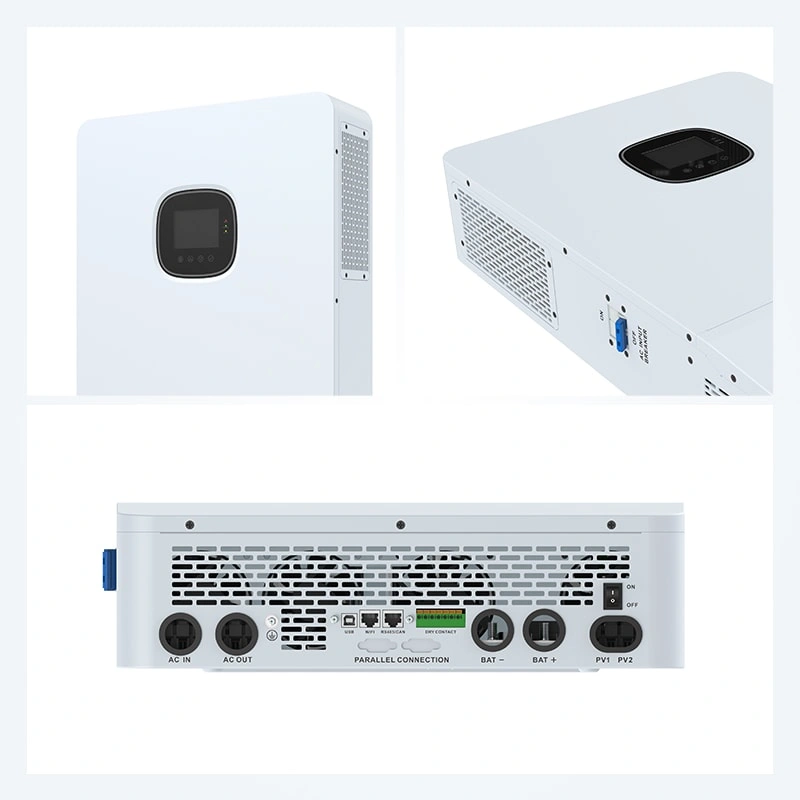

Embedded InterfacesRS485/CAN/USB/dry contact
External Modules (optional)Wi-Fi / GPRS
CERTIFICATION
SafetyIEC62109-1, IEC62109-2, and UL1741
EMCEN61000-6-1, EN61000-6-3, and FCC 15 class B
RohsYes

1. Are both 6.5KW and 10KW models compatible with 120V/240V systems?

Yes. Both models support split phase 120V/240V output, allowing compatibility with a wide range of residential and commercial electrical equipment.

2. Can users upgrade from 6.5KW to 10KW in future system expansion?

Yes. Many off-grid system designs allow users to expand system capacity over time, depending on battery configuration, solar array size, and installation requirements.

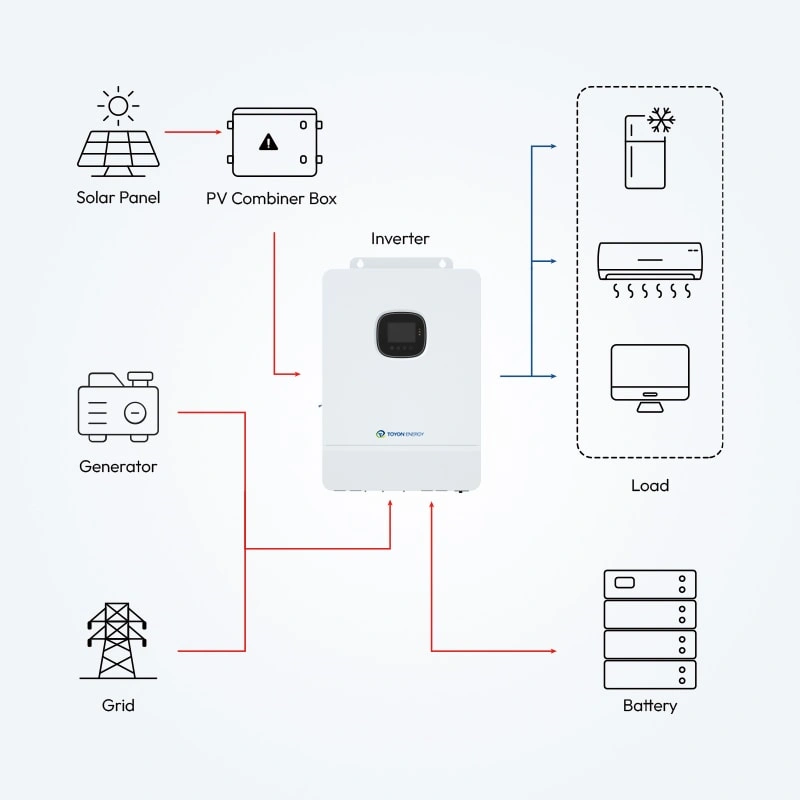

3.What is the advantage of a split phase off-grid inverter?

A split phase inverter can provide both 120V and 240V output, allowing it to power standard household devices as well as higher-voltage appliances such as air conditioners, pumps, and power tools.

4. Is the OSP Series suitable for North American power systems?

Yes. Split phase output is commonly used in North American residential electrical systems, making the OSP Series compatible with many local applications.

5. Which model is better for larger energy demands, 6.5KW or 10KW?

The 10KW model is more suitable for larger homes, workshops, or systems with multiple high-power appliances, while the 6.5KW model is ideal for standard residential off-grid applications.
