| Daily Energy Production: | 14.5KWh |
| Battery Storage Capacity: | 5.12KWh |
OEM 3.6KW Hybrid Solar Energy System for Residential Power Storage
The 3.6KW Hybrid Solar System is a residential solar energy solution designed for daily power consumption and backup applications. It includes 630W N-Type bifacial solar panels, a 5.12KWh (51.2V 100Ah) lithium battery, a 3.6KW hybrid inverter, and a PV mounting solution, delivering high-efficiency power generation, reliable energy storage, intelligent energy management, and reduced household electricity costs. Suitable for installation in areas with no grid access or unstable grid infrastructure. Grid feed-in function not supported.
Note: Please read the safety and installation manual before using the product. We reserve the right of final interpretation.
The specifications in this datasheet are subject to change without notice.

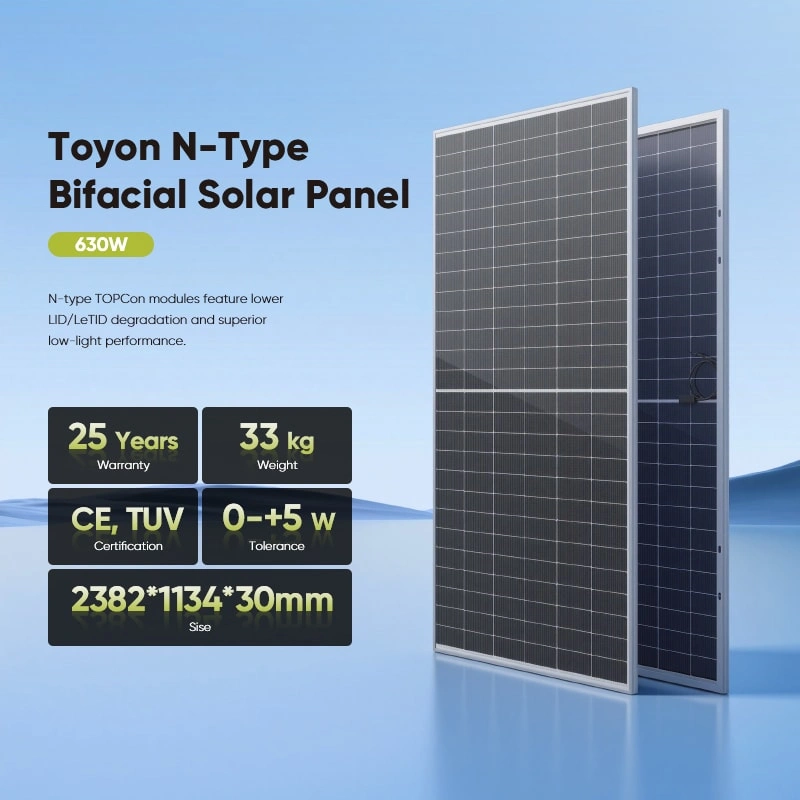

Toyon N-Type Bifacial Solar Panel ---- 630W
N-type TOPCon modules feature lower LID/LeTID degradation and superior low-light performance.
| Warranty | Weight | Certification | Tolerance | Size |
| 25 Years | 33Kg | CE, TUV | 0-+5W | 2382*1134*30mm |

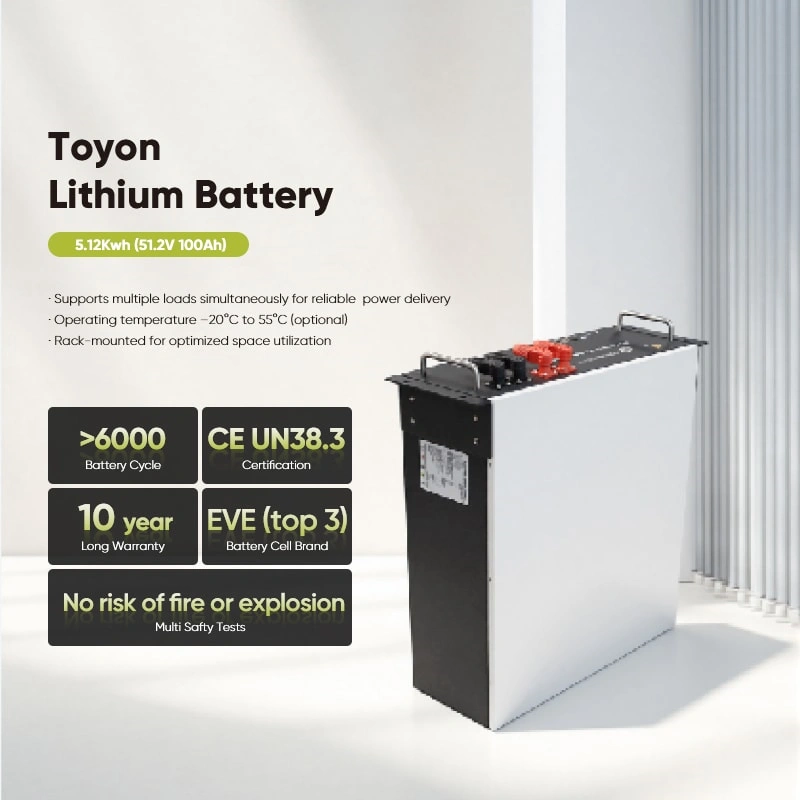

Toyon Lithium Battery ---- 5.12Kwh (51.2V 100Ah)
- Supports multiple loads simultaneously for reliable power delivery
- Operating temperature –20°C to 55°C (optional)
- Rack-mounted for optimized space utilization
| Battery Cycle | Certification | Long Warranty | Battery Cell Brand | Multi Safty Tests |
| >6000 @ 80% DOD | CE UN38.3 | 10 Years | EVE (top 3) | No risk of fire or explosion |

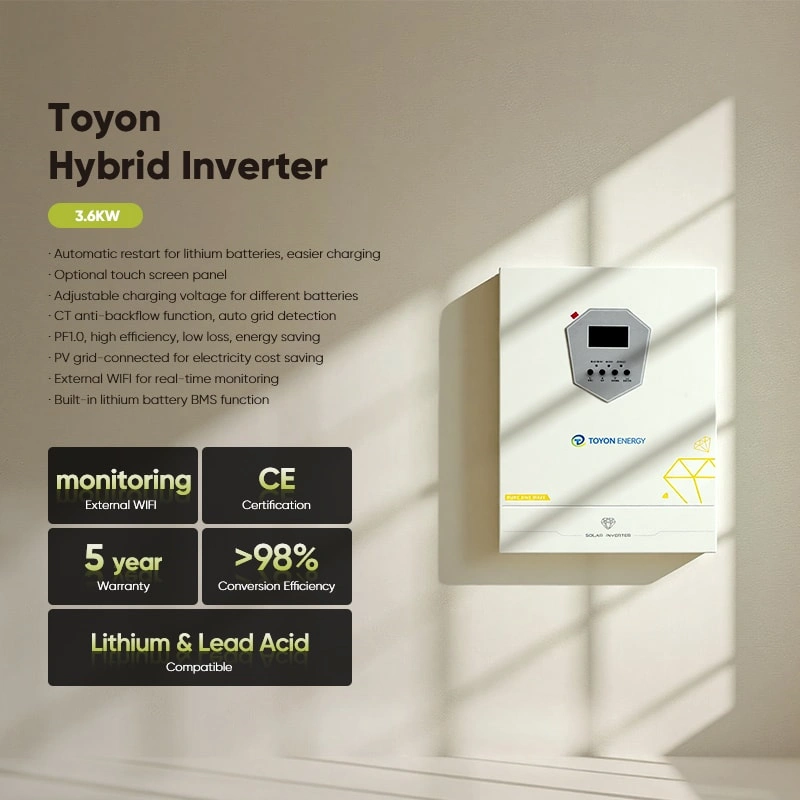

Toyon Hybrid Inverter ---- 3.6KW
- Automatic restart for lithium batteries, easier charging
- Optional touch screen panel
- Adjustable charging voltage for different batteries
- CT anti-backflow function, auto grid detection
- PF1.0, high efficiency, low loss, energy saving
- PV grid-connected for electricity cost saving
- External WIFI for real-time monitoring
- Built-in lithium battery BMS function
| External WIFI | Warranty | Conversion Efficiency | Certification | Compatible |
| Real-time monitoring | 5 Years | >98% | CE | Lithium & Lead Acid |

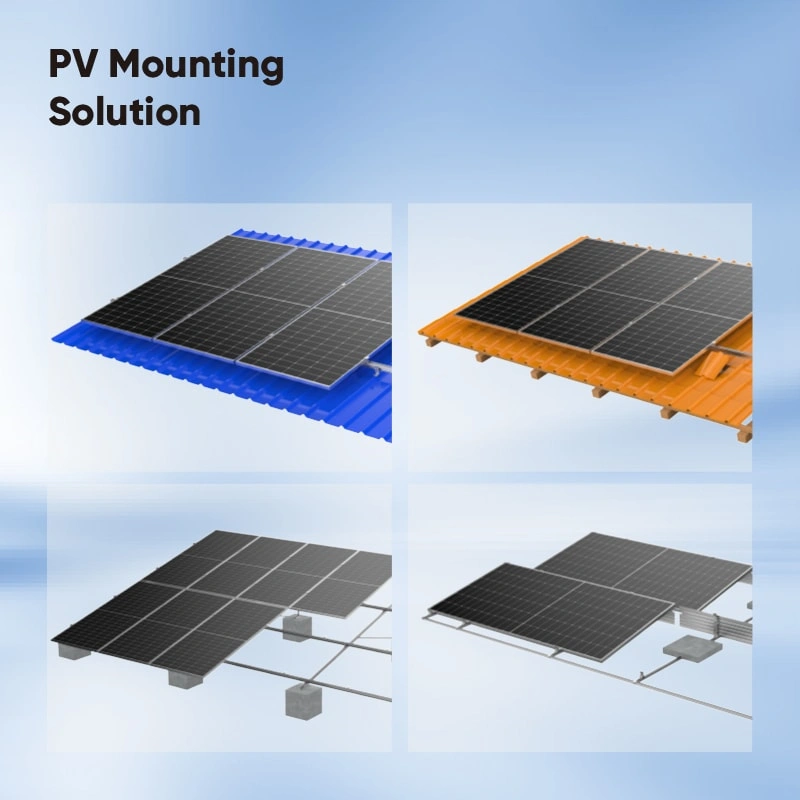

PV Mounting Solution
- Customize the layout plan based on the specific roof conditions.
- Aluminum Alloy Bracket, 10-Year Warranty
FAQs
1. What type of homes is the 3.6KW hybrid solar system suitable for?
The system is ideal for residential homes with moderate daily electricity consumption and backup power requirements.
2. Does the hybrid solar system work during power outages?
Yes. The system can continue supplying power through the lithium battery during grid failures.

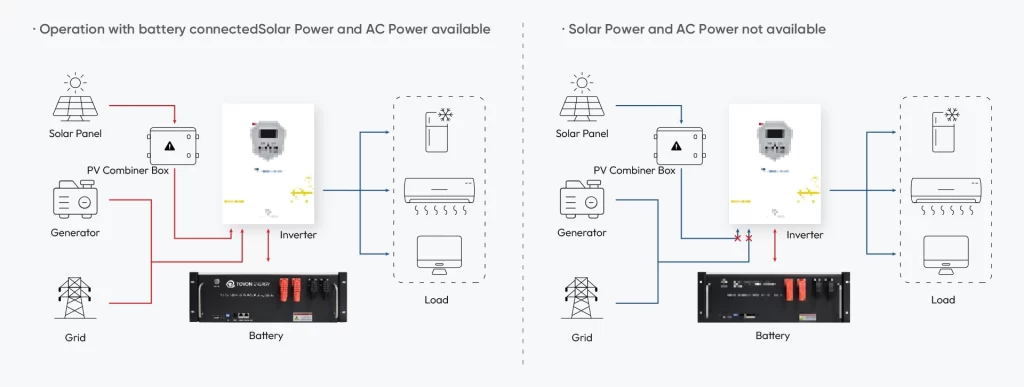

3. How does the hybrid solar system manage energy?
The system automatically balances solar generation, battery storage, and grid electricity for optimized energy usage.
4. Can the system store excess solar energy?
Yes. Excess daytime solar energy is stored in the 5.12KWh lithium battery for nighttime use.
5. What are the benefits of using a hybrid solar system instead of a traditional solar system?
A hybrid solar system provides both energy storage and backup power, improving energy independence and reducing reliance on the grid.
6. Why choose a complete hybrid solar system solution?
A complete system ensures better compatibility between solar panels, batteries, inverter, and mounting components for reliable overall performance.
7. Does the system require complex maintenance?
No. The hybrid solar system is designed for stable long-term operation with minimal maintenance requirements.
8. Is the system compatible with rooftop solar installations?
Yes. The included PV mounting solution is designed for stable residential rooftop installation.
