Product Type: |
Rack-mounted Battery |
Capacity Options: |
100Ah / 200Ah |
Battery Chemistry: |
LiFePO4 Lithium Battery |
Cycle Life: |
≥ 6000 times @ 80% DOD, 25 °C |
Factory Price 5.12/10.24kWh Wall Mounted Lithium Battery for Solar Storage Solution
The TY-LVW5 51.2V is a 51.2V 200Ah 10kWh wall-mounted LiFePO4battery designed for residential energy storage. It delivers over 6,000 cycles at 90% depth of discharge (DoD) with a 10-year design life, supports most 48V inverters, and features a high-eciency DC-coupled architecture.
Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.
The specifications in this datasheet are subject to change without notice.
Features
Flexible Expansion
- Up to 16 units in parallel
- Capacity: 5.12-163.8 kWh
1C Discharge Rate
- Supports multiple loads simultaneously for reliable power delivery
Automatic Self-heating
- Operating temperature–20°C to 55°C (optional)
Ultra Safe
- Intelligent fire extinguishing system detects and suppresses fire within 5s (optional)
Easy Installation
- Floor-mounted for optimized space utilization
Smart Management
- Real-time monitoring, remote control and OTA updates
Product Description
| 100Ah | 200Ah | |
| Product Model | TY-LVW5 51.2V | TY-LVW5 51.2V |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.12 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 100 |
| Maximum Discharge Current (A) | 100 | 100 |
| Features | ||
| Cycle Life | ≥6000 times @ 80% DOD, 25 °C | ≥6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Charging Temperature | 0~60 °C | 0~60 °C |
| Discharge Temperature | -10~65 °C | -10~65 °C |
| How It Is Displayed | LCD display | LCD display |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||
| Product Dimensions (L×W×Hmm) | 560×440×151 | 680×520×151 |
| Net Weight (Kg) | 44 | 80 |
| Packing Dimensions (L×W×Hmm) | 632×512×255 | 755×595×340 |
| Gross Weight (Kg) | 50 | 94 |
Product Advantages

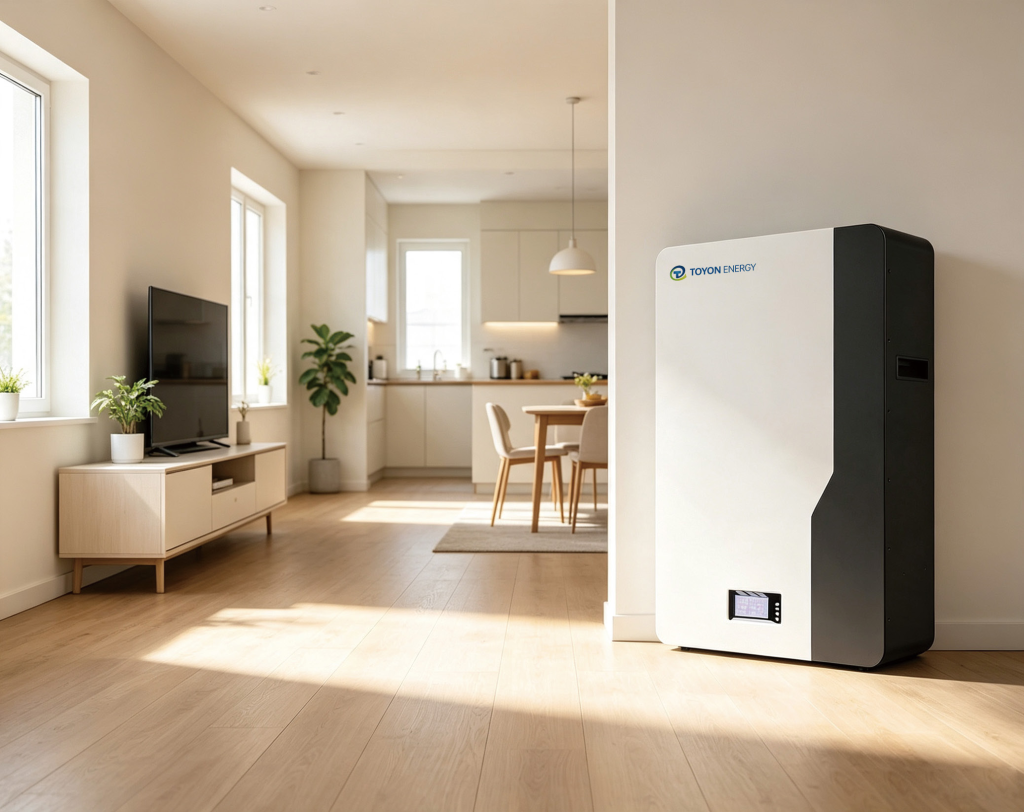

Space-Saving Wall-Mounted Design
Designed with a compact wall-mounted structure, this lithium battery saves valuable floor space and is ideal for residential applications where installation space is limited.
Safe & Reliable LiFePO4 Battery Technology
Built with advanced lithium iron phosphate (LiFePO4) cells, the battery offers excellent thermal stability, long cycle life, and enhanced safety performance for daily energy storage.
Flexible Energy Capacity Options
Available in 5.12kWh and 10.24kWh capacity versions, the battery can meet different household energy demands, from basic backup power to higher energy independence.
Easy Installation & Maintenance
The lightweight modular design enables quick wall installation, reducing installation time and simplifying system maintenance.
Smart Energy Management
Compatible with solar inverters and intelligent energy management systems, it helps optimize solar energy utilization and improve household energy efficiency.
Reliable Backup Power Supply
Provides stable power backup during grid outages, ensuring continuous electricity supply for essential household loads.
Technical Highlights
- Battery Chemistry: LiFePO4 (LFP)
- Nominal Voltage: 51.2V
- Capacity Options: 5.12kWh / 10.24kWh
- Wall-Mounted Design
- Compact & Space-Saving Structure
- Intelligent Battery Management System (BMS)
- CAN / RS485 Communication
- Parallel Expansion Support
- High Charge & Discharge Efficiency
- Long Cycle Life
- Multiple Protection Functions
- Compatible with Hybrid Solar Inverters
Typical Applications
Residential Solar Energy Storage
Store excess solar power generated during the day and use it at night, increasing solar self-consumption and reducing electricity costs.
Home Backup Power
Provide reliable backup electricity for lighting, appliances, communication equipment, and other critical household loads during power interruptions.
Off-Grid Solar Systems
Support independent energy systems in remote areas without reliable grid access.
Small Residential Microgrid
Work together with solar panels, inverters, and energy management systems to build a smart home energy solution.
Peak Load Shifting
Charge the battery during low electricity price periods and discharge during peak demand periods to optimize energy costs.
Why Choose a Wall-Mounted Lithium Battery?
Optimized for Residential Energy Storage
Compared with traditional floor-mounted batteries, wall-mounted lithium batteries require less installation space and integrate easily into modern homes.
Higher Safety with LiFePO4 Chemistry
LiFePO4 technology provides excellent stability, low risk of thermal runaway, and a longer service life compared with traditional battery technologies.
Lower Electricity Costs
By storing solar energy and using it when electricity demand is high, homeowners can reduce dependence on grid power and improve energy savings.
Flexible Capacity Expansion
Multiple battery units can be connected in parallel to increase storage capacity according to future energy requirements.
Long-Term Investment Value
With thousands of charge and discharge cycles, the battery delivers reliable performance throughout years of operation.
FAQs
1. What is the difference between 5.12kWh and 10.24kWh batteries?
The 5.12kWh battery is suitable for standard residential backup and daily energy storage needs, while the 10.24kWh model provides larger energy capacity for homes with higher electricity consumption.
2. Why are wall-mounted lithium batteries popular for home energy systems?
Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.
3. What capacity options are available for this wall-mounted battery?
This wall-mounted lithium battery is available in 5.12kWh and 10.24kWh capacity options, allowing users to choose the suitable energy storage capacity based on household electricity consumption.
4. What type of battery cells are used in this energy storage battery?
The battery uses LiFePO4 (Lithium Iron Phosphate) battery chemistry, which provides high safety, excellent thermal stability, long cycle life, and reliable performance.
5. Can multiple wall-mounted batteries be connected together?
Yes. Multiple battery units can be connected in parallel to expand total storage capacity and meet higher household energy demands.
6. Can the battery be installed indoors and outdoors?
The installation environment depends on the specific model protection rating. It is recommended to install the battery in a dry, ventilated location and avoid direct exposure to extreme weather conditions.
7. What is the operating temperature range of this lithium battery?
The battery is designed to operate in a wide temperature range. For optimal performance and lifespan, installation in a suitable environment is recommended.
