Cell Type: |
166x55.33Mono |
No. of Cells: |
72(4x18) |
Maximum System Voltage(V): |
1000 |
Maximum Series Fuse Rating(A): |
15 |

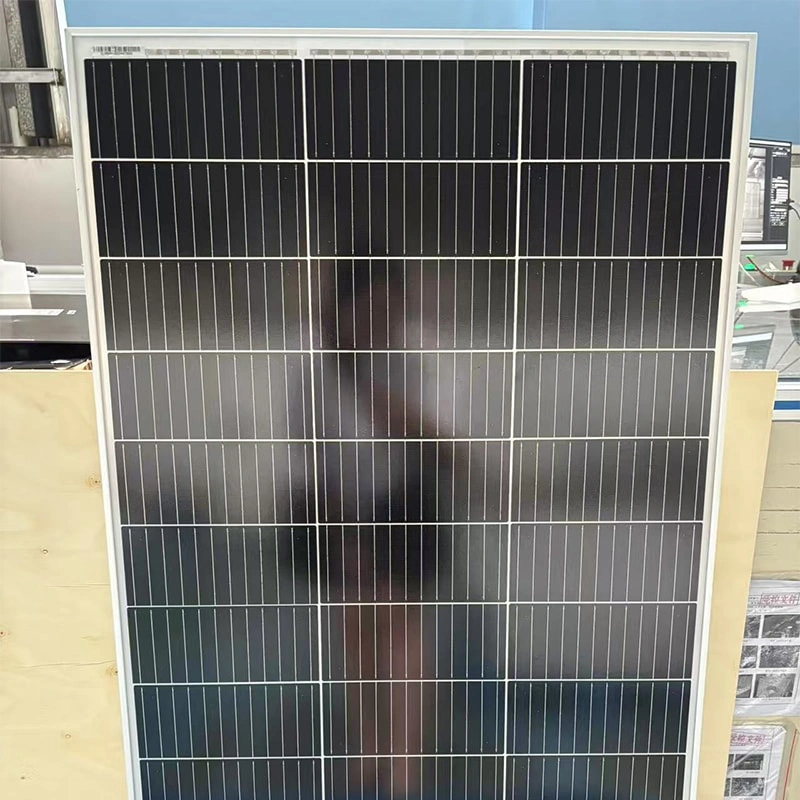

Compact 140-150W Solar Panel for Off-Grid & Distributed PV Projects
140-150W Solar Panel is a compact PV module designed for off-grid, distributed solar, and space-limited applications. Its smaller power output and flexible installation design make it suitable for small solar systems, backup power, remote facilities, and customized PV projects.
Mechanical Characteristics
| Cell Type | 166x55.33Mono |
| No. of Cells | 72(4x18) |
| Dimensions | 1080*705*30mm |
| Weight | 8kg |
| Front Glass | 3.2mm high transmission low iron,tempered glass |
| Frame | Anodized Aluminium Alloy |

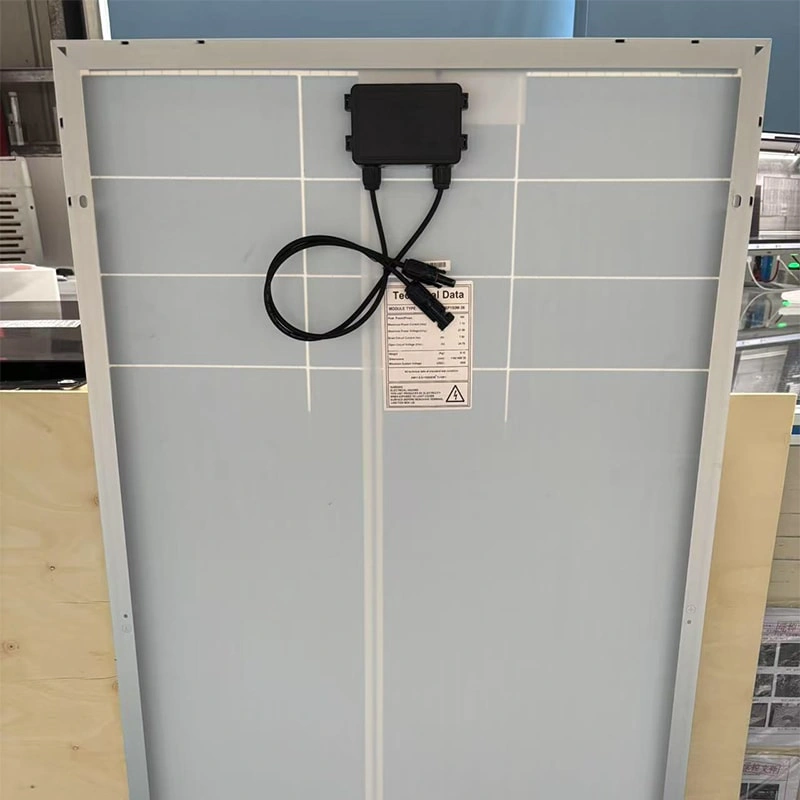

| Junction box | IP65/IP67 |
| Output cables | 2.5mm cable 50cm+mc4 |
| MaxWind Load/Snow Load | 2400Pa/5400Pa |

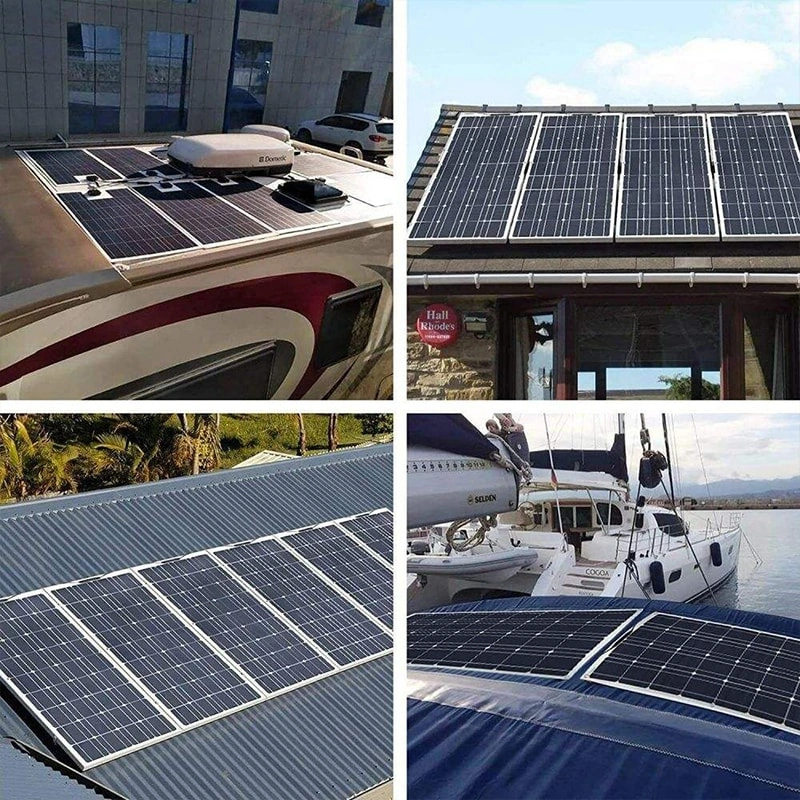

Applications
Off-Grid Solar Systems
Suitable for remote areas and standalone solar systems where reliable local power generation is required.
Small Distributed PV Systems
Can be used for small commercial, agricultural, and distributed solar applications.
Remote Power Supply
Suitable for remote facilities and locations where grid electricity is unavailable or difficult to access.
Customized Solar Projects
The compact format provides greater flexibility for projects with limited installation space or special layout requirements.
Why Choose 140-150W Solar Panel?
Space-Friendly Design
The compact format provides more flexibility when standard-size solar modules are difficult to install.
Flexible System Sizing
Multiple modules can be configured to meet different power requirements without relying on a single large module.
Broad Application Range
Suitable for off-grid, distributed, remote, and customized solar applications.
Easier Transportation & Installation
The smaller module format can simplify handling and installation, particularly for smaller or remote projects.
B2B Supply Support
Suitable for distributors, installers, EPC contractors, and solar project developers requiring customized module solutions.
FAQs
1. What applications are suitable for the 140-150W solar panel?
It is suitable for off-grid systems, remote power supply, distributed PV, and space-limited solar projects.
2. Why choose a smaller solar panel instead of a high-power module?
Smaller modules offer greater flexibility for projects with limited installation space or customized layouts.
3. Can multiple 140-150W panels be connected together?
Yes. Multiple modules can be combined to achieve the required system capacity.
4. Is it suitable for off-grid solar systems?
Yes. It can be integrated with compatible batteries and off-grid inverters for standalone solar power systems.
