Cell Type: |
166x41.5Mono |
No. of Cells: |
36(3x12) |
Maximum System Voltage(V): |
1000 |
Maximum Series Fuse Rating(A): |
10 |
50W Compact Custom Solar Module Commercial PV Project Supply
50W Custom Solar Modules are designed for commercial and industrial PV projects requiring flexible solar module configurations. The solution can be customized according to project capacity, installation space, module specifications, and application requirements, making it suitable for factories, warehouses, commercial buildings, and other distributed solar projects.
Mechanical Characteristics
| Cell Type | 166x41.5Mono |
| No. of Cells | 36(3x12) |
| Dimensions | 570*540*25mm |
| Weight | 3.3kg |
| Front Glass | 3.2mm high transmission low iron,tempered glass |
| Frame | Anodized Aluminium Alloy |
| Junction box | IP65/IP67 |
| Output cables | Without cables and connector |
| MaxWind Load/Snow Load | 2400Pa/5400Pa |

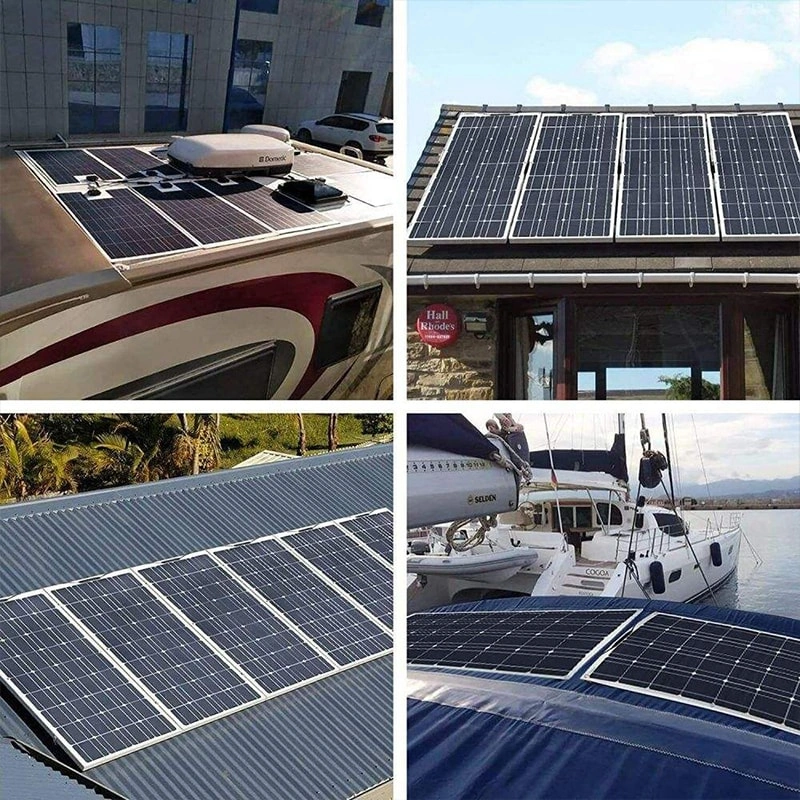

Applications
Factory Rooftop Solar
Customized module configurations can make better use of available factory roof space for commercial PV generation.
Warehouse & Logistics Facilities
Suitable for large warehouse roofs where solar capacity needs to be matched with available installation areas.
Commercial Buildings
Can be used for offices, retail facilities, and other commercial properties seeking distributed solar solutions.
Industrial & Distributed PV Projects
Suitable for C&I projects where module configuration needs to be adapted to specific site conditions.
Why Choose Our 50W Custom Solar Modules?
Designed Around Your Project
Instead of using a fixed configuration, the module solution can be adjusted according to your project's capacity and installation conditions.
Better Use of Available Space
Customized module selection and layout can help EPC contractors make more effective use of different roof shapes and available areas.
Flexible System Matching
The modules can be matched with suitable inverters and mounting systems to create a complete PV solution.
Suitable for Different C&I Sites
From factory rooftops to warehouses and commercial buildings, the configuration can be adapted to different project environments.
Support for B2B Projects
Suitable for EPC contractors, distributors, installers, and solar developers requiring customized module solutions for multiple projects.
FAQs
1. What does a 50W custom solar module solution include?
It refers to a customized PV module configuration designed to achieve approximately 50kW of total solar capacity based on the project requirements.
2. Can the module configuration be customized for different rooftops?
Yes. Module selection and system configuration can be adjusted according to roof size, layout, available space, and project requirements.
3. Can the modules be matched with different solar inverters?
Yes. The module configuration can be designed according to the selected inverter's voltage, current, and system requirements.
4. Can I request a customized configuration for my project?
Yes. You can provide your project capacity, location, roof conditions, preferred module power, and other requirements for a customized proposal.
5. Is a 50W PV system suitable for factory rooftops?
Yes. It is suitable for small- to medium-sized commercial and industrial rooftop solar projects.
